DU70
DU70
Meinberg

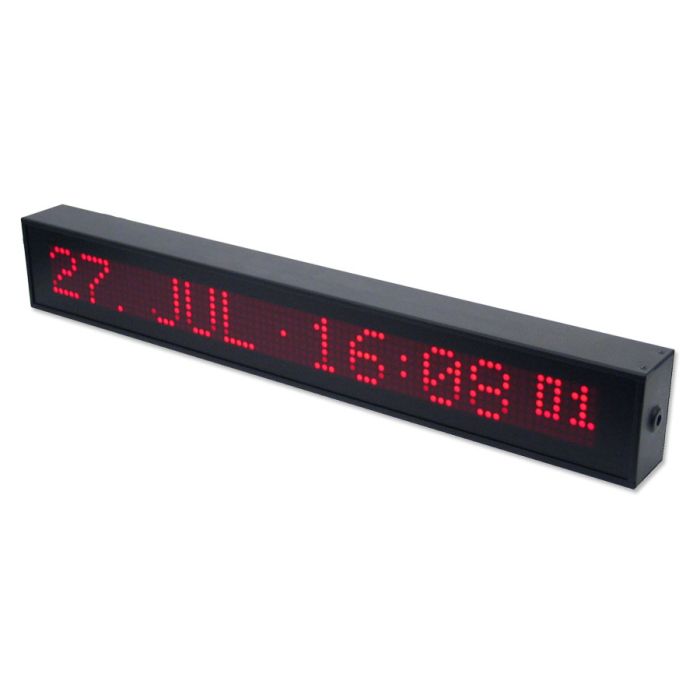

LED Large Display, single-line, showing date/time with seconds
Large display DU70 with good visibility and 50mm height LED characters.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/du70_wrp.pdf |
| Form Factor | Plastic coated steel sheet case, black (optional: white), |
| Relative Humidity | Max. 85% |
| Further information |
Working as:
radio clock with integrated DCF77 receiver, DCF indoor antenna AI01 and 5m cable (standard) or, by customers specifications, with an external outdoor antenna AW02. Antenna cables can be prefabricated as required. The connection to the external antenna can be done via BNC connector at the rear panel of the display free running clock (with or without automatic changeover in daylight saving) or as externally driven display, via serial timestring (RS232 or current loop) |
| RoHS | Yes |
| Product Type | LED Displays |
| Protection | IP30 |
| Output Display Type | LED-Matrix Display (7 dots high) for time and date 50mm character height Without RF signal the clock runs on XTAL with an accuracy of ±1·10-5, indicated by LED |
| Data format of interfaces |
Baudrate: 9600 baud
Dataformat: 7E2 1 active/passive 20mA current loop output (selectable) 1 active/passive 20mA current loop input (selectable) Output string: 32 ASCII characters with date, time and status information |
| Electrical Connectors |
2 x 25 pin DSub female connector
BNC antenna connector (only DCF77 variant) power cord receptacle |
| Scope of supply | DU70 LE-Display, printed manual, power cord and angle brackets for wall mounting (for a vertically swivelling display). |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end use |
| Backup Battery Type | In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 100 hours |
| Key Features |
Stand Alone Clock
20mA Interface 50mm LED Display for Time and Date RS-232 interface Display for external Clock DCF77 Receiver (Option) Cascadable Option: DU70/ND with network connection (allows the display of FDM data) |
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Interface | One serial RS232/20mA interface |
| Power Supply | 85-264VAC (50/60Hz) / 120-375VDC |
| Dimensions | 682mm x 100mm x 60mm ( width x height x depth) |
