VEGA-330
VEGA-330
Advantech

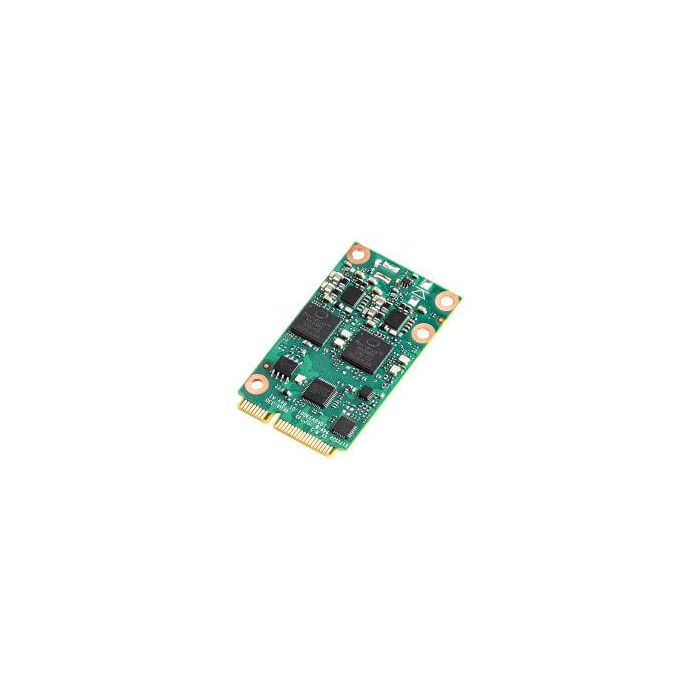

miniPCIe Edge AI Module with two Intel® Movidius™ Myriad™ X VPUs onboard
Edge AI Acceleration Module
miniPCIe Edge AI Module with two Intel® Movidius™ Myriad™ X VPUs onboard
Key Features
- Intel® Movidius™ Myriad™ X VPU onboard
- Ultra compact, Low power consumption
- Hardware acceleration for common deep neural networks
- Scalable for multi video streams edge inference
- 10 times the performance compared to previous generation
- Intel® OpenVINO™ toolkit fully supported
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Consumption | 3.8W |
| Form Factor | Full size Mini PCIe |
| Operating Temperature | -20 ~ 60 °C, with 0.7m/s air flow |
| Dimensions | 30mm x 50.95mm x 4.86mm |
| Interface | PCIe Gen2 x1, USB 2.0 |
| Operating System | Windows 10 Enterprise 64 bit, Ubuntu 16.04.3 LTS (64 bit), CentOS 7.4 (64 bit) |
| Processor | SOC one Myriad X MA2485 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
