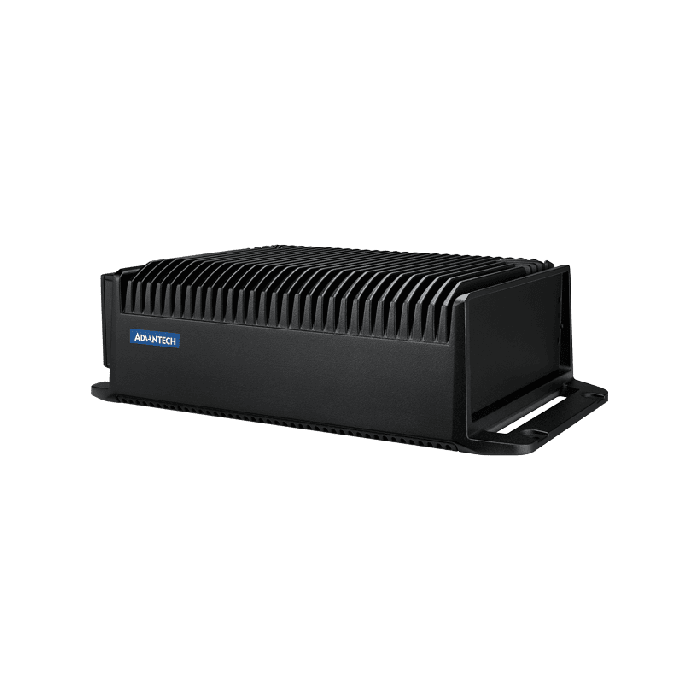

TREK-50N
TREK-50N
Advantech
NVIDIA® Jetson Orin™ NX Edge AI Computer for In-Vehicle & Harsh Environments
As a rugged IP67 edge AI in-vehicle computer, the TREK-50N is powered by NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS of AI inference performance. It is designed for commercial vehicles and heavy-duty machinery, and to meet the needs of various vision-based AI applications it supports 4 GMSL2 or 4 PoE ports. TREK-50N inherits the trusted design of the TREK series, featuring an ISO 7637-2 compliant automotive power design, EN 60721-3-5 (5M3) vibration and shock resistance, IP67-rated water and dust protection, and an operating temperature range of -20°C to 70°C.
Key Features:
- In-vehicle Edge AI computer with NVIDIA® Jetson Orin™ NX
- In-vehicle power design: 12V/24V automotive power compliant with ISO 7637-2 and E-Mark
- Rugged design compliant with IP67, EN 60721-3-5 (5M3) vibration and shock standards, -20°C to 70°C operating temperature without airflow
- Supports 2 x CAN FD and either 4 x GMSL2 or 4 x PoE
- Modular design supports Automotive Ethernet, RF communication, and C-V2X
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory | 8GB / 16GB 128-bit LPDDR5 DRAM |
| CAN | 2 x CAN FD; compliant with CANbus, J1939, OBD-II/ISO-15765 specifications |
| USB |
1 x USB 3.0 Type A |
| Serial Ports | 2 x 4-wire RS-232/RS-485 (default RS232 + 485) |
| Mini PCIe |
1 x full-size mini PCIe (PCIe/USB 2.0) for Wi-Fi 5 + Bluetooth V5.0 |
| SIM | 1 x externally accessible mini SIM card socket with cover; 1 x embedded SIM (upon request) |
| Expansion M.2 |
1 x M.2 2230 (A+E Key) for Wi-Fi 6 + Bluetooth V5.0 |
| GMSL (Optional) | 4 x FAKRA Z GMSL2 (by SKU; either PoE Ports or GMSL Ports) |
| Ethernet |
1 x RJ45 Giga LAN |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
