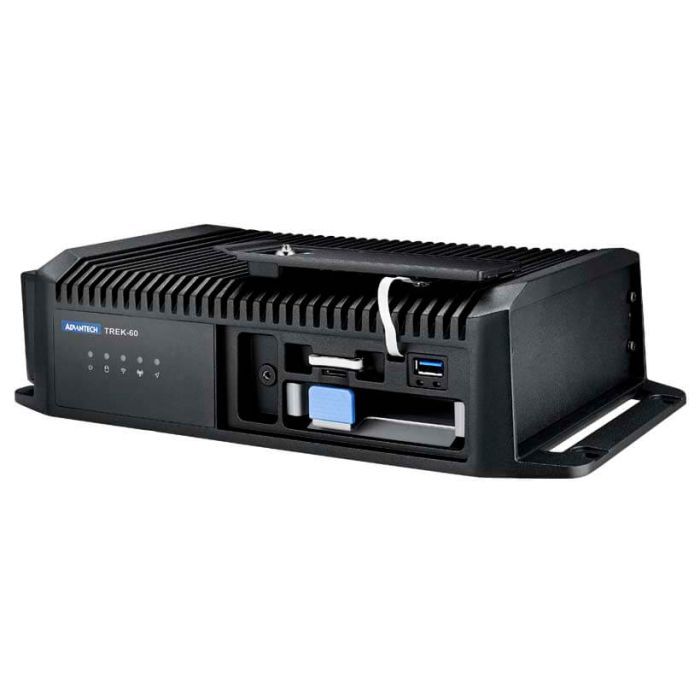

TREK-60
TREK-60
Advantech
Rugged In-Vehicle Edge AI Platform with 8-Channel PoE for In-Vehicle & Harsh Environments
Aimed at Fleet Management and Heavy Duty Machinery applications, TREK-60 features an Intel® Core™ i7/i5/Atom™ for high-performance computing, plus up to eight camera input channels and an integrated AI accelerator for scalable video-stream edge inferencing. The RF extension module with automotive-grade FAKRA connector provides GNSS, WLAN, Bluetooth, and WWAN capabilities for real-time communication, vehicle tracking, and data collection. The embedded dual CAN bus supports diverse vehicle protocols including raw CAN, J1939, and OBD-II, while the intelligent vehicle power management system supports ignition on/off/delay and wake-up event control. The rugged design supports a wide operating temperature range (-30 ~ 70°C) and is compliant with MIL-STD-810G and 5M3 specifications for vibration and shock resistance.
Key Features:
- 8ch PoE & Best Fit I/Os
- In-vehicle specialized: 12V/24V certified car power (E-Mark, ISO-7637-2), dual CANbus
- IP65, 5M3 shock and vibration tolerance, -30 ~ 70°C wide temperature w/o airflow
- Modular design supports the latest RF communication technologies
- ONE cable connection with TREK displays
- Multiple AI accelerator options: Intel® OpenVINO™, Google Coral, Hailo for edge AI computing
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory |
1 x SODIMM, up to 16GB (Atom) |
| CAN | 2 x CAN bus (CANFD compliant, Core i 13th version); J1939, OBD-II/ISO-15765; 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers; ISO 11898-2, up to 1 Mbit/s; configurable via SDK |
| USB |
1 x USB 2.0 Type A (front) |
| Serial Ports |
2 x 4-wire RS-232 (default)/RS-485 |
| Mini PCIe |
1 x full-size mini PCIe (USB 2.0) for V2X module |
| SIM | 1 x externally accessible mini SIM card socket with cover; 1 x embedded SIM (upon request) |
| Expansion M.2 |
1 x M.2 E-Key 2230 (PCIe Gen3 x1 + USB 2.0) for Edge AI |
| Ethernet | 2 x Giga LAN (with optional locking mechanism, or M12 connector) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
