TREK-773
TREK-773
Advantech

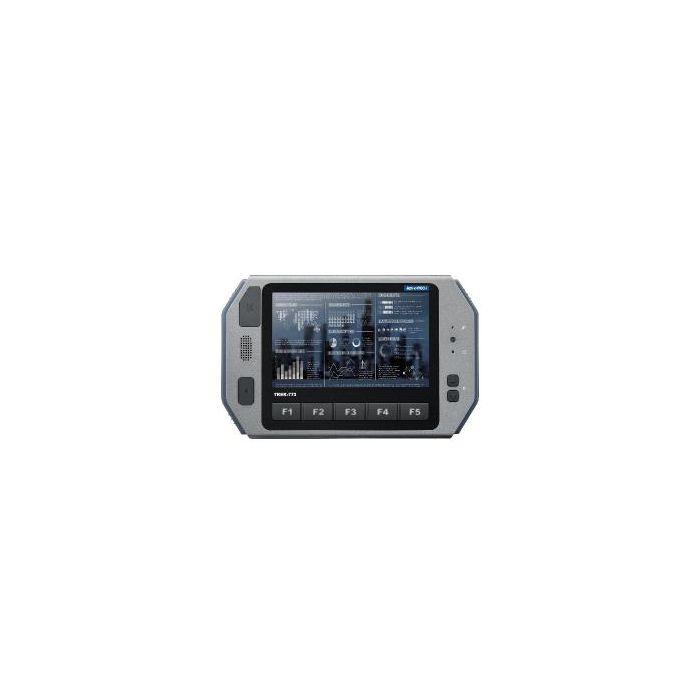

7" All-in-One Ultra Rugged Mobile Data Terminal
The TREK-773 is an advanced all-in-one 7" mobile data terminal representing the next generation in mobile data terminal technology. Powered by an Intel Atom® E3827 SoC, it delivers high-performance computing with a wired connection through Gigabit Ethernet, CAN 2.0B (J1939, OBD-II/ISO 15765), and J1708 (J1587). Integrated LTE, GPS, WLAN, and Bluetooth ensure seamless connectivity and real-time data transmission. Designed for the automotive market, the TREK-773 is compatible with 12/24 V vehicle power and adheres to ISO 7637-2 and SAE J1113 standards, with a ruggedized chassis, a wide operating temperature range (-30 ~ 60°C), and impressive shock (100G, 6ms) and vibration tolerance.
Key Features:
- Intel Atom® E3827 SOC with support for WES8, WES7, Win10, and Ubuntu operating systems
- 7" WVGA wide-angle LCD resistive touchscreen
- Rugged platform with 5M3 shock and vibration tolerance, -30 ~ 60°C wide temperature w/o airflow
- Vehicle diagnostics interface with CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587) protocols
- Built-in GNSS & NFC, optional WLAN, Bluetooth, LTE WWAN
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Memory | 1 x SODIMM socket, up to 8 GB DDR3L 1066/1333 non-ECC (4 GB default for full configuration) |
| CAN | 1 x CAN bus (supports raw CAN, J1939, OBD-II/ISO 15765) |
| USB |
1 x USB 3.0 host Type-A (rear) |
| Serial Ports |
1 x high-speed full RS-232 (rear; RS-232 RI pin configurable to 12 VDC output) |
| Mini PCIe |
WLAN + Bluetooth: IEEE 802.11a/b/g/n/ac + BT V5.0 via full-size mini PCIe |
| SIM | 1 x SIM card slot (left) |
| SD Card | 1 x externally accessible push-push-type SD slot with cover |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
