L1-150M1
L1-150M1
Narda Safety Test Solutions
Multi-Standard Single Line 10 kHz – 400 MHz

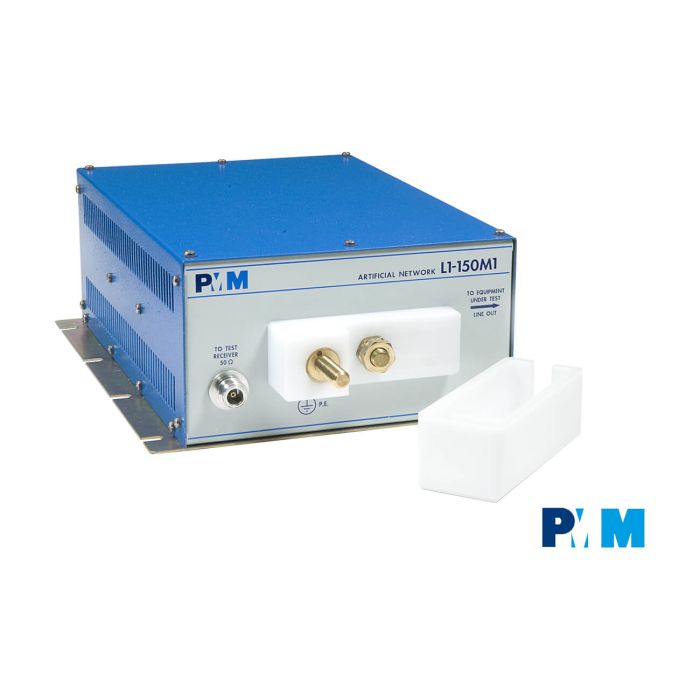

The L1-150M1 is a single-line LISN designed for easy use in conducted interference testing.
The L1-150M1 operates up to 400 MHz, supporting up to 150 amperes.
An excellent choice for automotive testing. It offers a wide frequency range, compliance with standards, ease of use, accuracy and reliability, robustness, and a competitive price.
The L1-150M1 version is also compliant to:
- DO-160
- ED-14G
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 230 x 105 x 410 mm |
| Weight | 5 kg |
| Maximum Frequency | 400 MHz |
| Minimum Frequency | 10 kHz |
| Frequency Range | 10 kHz to 400 MHz |
| Operating Temperature | -10 °C to +45 °C |
| Continuous Rated Output Current | 100 A |
| Max Permissible | 600 Vdc |
| Operating Voltages | 300 Vac |
| EUT Supply Frequency Range | DC to 440 Hz |
| Equivalent Circuit | (5 μH + 0/1 Ω) // 50 Ω |
| RF Output Connector | N female, 50 Ω |
| EUT Connection | Screw terminal M10 |
| Line Input Connection | Screw terminal M10 |
| Ground Connection | 2x Screw terminal M10 |
| Storage Temperature | -25°C to 70°C |
| Max Output Current @45°C | 150 A |
