L3-32
L3-32
Narda Safety Test Solutions
Three-Phase Plus Neutral 9 kHz – 30 MHz

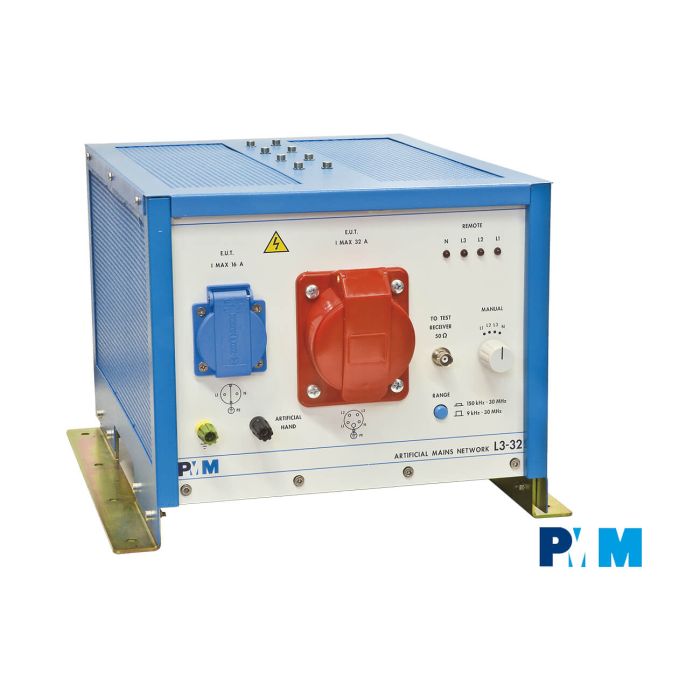

Double frontal three-phase socket 32A and Schuko 16A
The L3-32 is a 3 phase LISN, used for RFI measurements on AC three-phase, power supplied electric and electronic equipment. It supports up to 32 ampere and is equipped with a frontal single-phase socket, for the most common devices.
The L3-32 ia a three line V-network with an equivalent circuit of 50 ohm // (5ohm + 50μH), equipped with a high pass filter 150 kHz – 30 MHz, suited to perform measurements on conducted interference in the frequency range from 9 kHz to 30 MHz.
Designed according to criteria of cheaply and compactness it can be used together with every PMM-Narda receiver, also in remote, for conducted interference, like the 9010F, or any other RF receiver.
The L3-32 is fully compliant to:
- CISPR 16-1-2
- VDE 0876
- FCC part 15
- MIL-STD 461F
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 MHz |
| Maximum Operating Voltage |
Schuko plug 16 A Single-phase (L/N) (L/PE) (N/PE): 230 Vac; 325 Vdc Three-phase (L/PE) (N/PE): 230 Vac; 325 Vdc (L/L) (L/N): 400 Vac; 565 Vdc |
| Operating Temperature | -10 °C to +45 °C |
| RF Output | BNC female |
| Max Continuous Rated | IEC plug 32 A |
| Max Output Current | Schuko plug 16 A |
| Equivalent Circuit | 50 Ω // [5 Ω + 50 μH] with 250 μH choke |
| Test Item |
32 A IEC connector 16 A SCHUKO connector |
| Line Plug | IEC 60320 C20 |
| Storage Temperature | -25°C to 75°C |
| Input Mains Frequency Range | DC to 60 Hz |
| Dimensions | 342 x 254 x 510 mm |
| Weight | 16.5 kg |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
