HI-3638
HI-3638
ETS-Lindgren
ELV/VLF Electric Field Meter
ETS-Lindgren's HI-2200 RF Survey Meter is a lightweight, easy to hold instrument for less accessible measurement locations such as towers and ladder access situations.

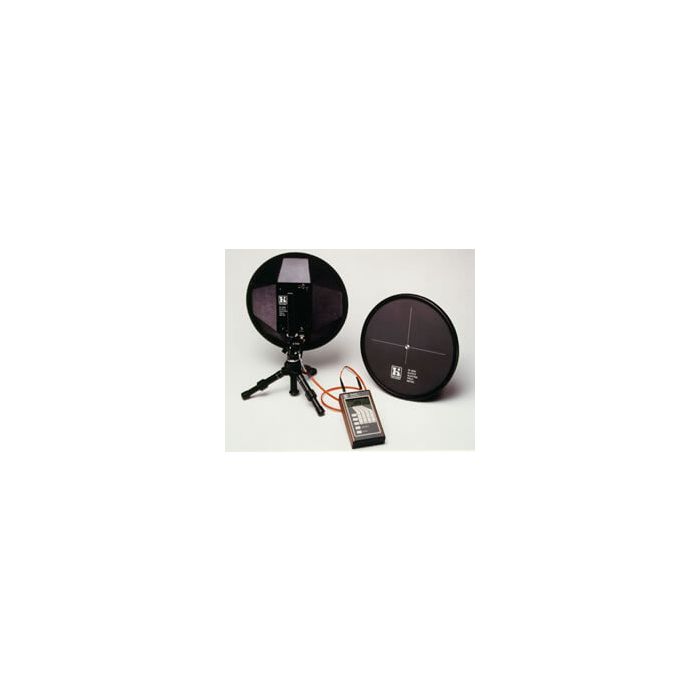

ETS-Lindgren's Model HI-3638 VLF/ELF Electric Field Meter is a EMF meter that has full ELF (extremely low frequency) and VLF (very low frequency) capability to the Swedish MPR and the IEEE 1140 test requirements in a single meter, making electric eld testing quick and simple.
The HI-3638 sensor is fully isolated from the readout device (HI-4416 numeric handheld readout or HI-4413USB Optical Modem) by up to 100 meters of ber optic cable.
To assist users in automating the test session and analyzing the test data, ProbeView™ II EMF Analysis Software can be used in conjunction with the HI-3638 when connected to a PC.
The instrument demonstrates wide applicability from low eld measurements higher eld environments such as near power transmission lines and industrial locations. NOTE: Tripod not included.
Key Features:
- Wide frequency range 5 Hz – 400 Khz (Band Switched)
- Wide dynamic range 1.9 V/m – 40 kV/m
- True RMS measurement
- Fully isolated measurements
- Remote sensing up to 100m
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Configuration |
|
| Frequency Response |
Band 1 (ELF): 5 – 2000 Hz
|
| Dynamic Range | 1.0 V/m – 40 kV/m (each band) |
| Product Category | RF Field Monitor |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
