ERZ-HPA-0200-0400-24
ERZ-HPA-0200-0400-24
Erzia

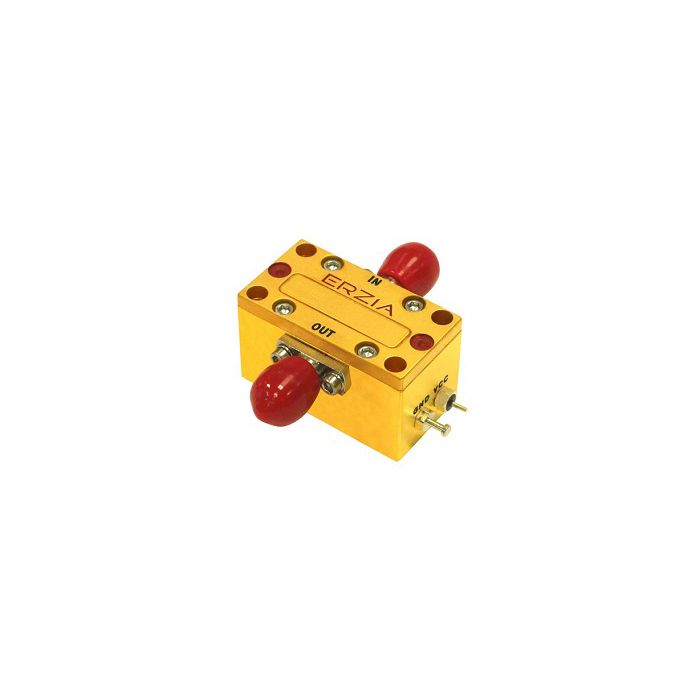

S Band High Power Amplifier
The ERZ-HPA-0200-0400-24 is a low frequency wideband amplifier providing up to 23 dBm and a gain of 22 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 2.0000 |
| Frequency Stop (GHz) | 4.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 116 |
| Storage Temperature | -55°C to 125°C |
| Band | S Band |
| Output Power (dBm) | 23 |
| Gain (dB) | 22 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Applications |
|
| Dimensions | 16 x 30 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
