ERZ-HPA-0600-2650-40-RM
ERZ-HPA-0600-2650-40-RM
Erzia

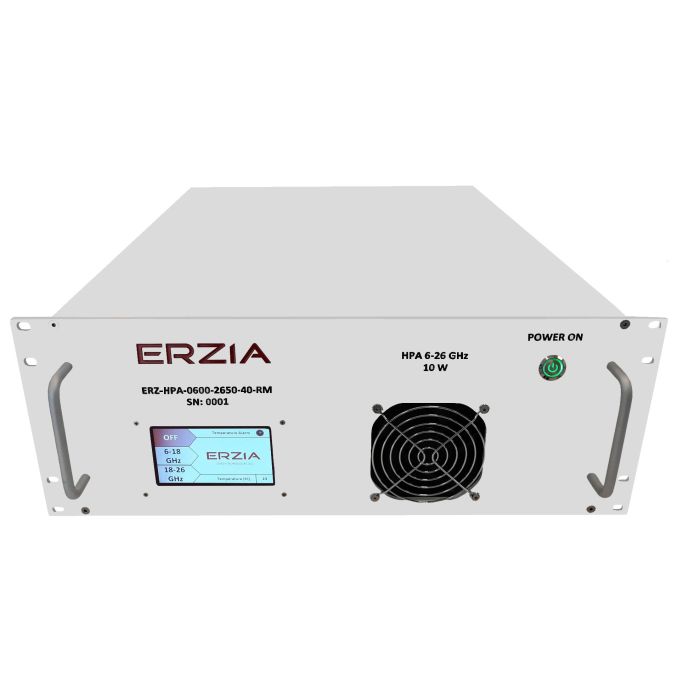

Wideband High Power Amplifier
The ERZ-HPA-0600-2650-40-RM is a Wideband high power amplifier with two independent bands operating from 6 to 18 GHz and from 18 to 26.5 GHz and providing an output power up to 20W. The module offers different gain levels through a controlled attenuator.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 6.0000 |
| Frequency Stop (GHz) | 26.5 |
| Power Supply (V) | 230V AC |
| Applications |
|
| Storage Temperature | 0°C to 75°C |
| Band | Wideband |
| Output Power (dBm) | 43 |
| Gain (dB) | 34 |
| Operating Temperature | 0°C to 40°C |
| Connectors | 2.92 mm Female |
| Product Type | High Power Amplifier |
| Dimensions | 19'' 4U |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
