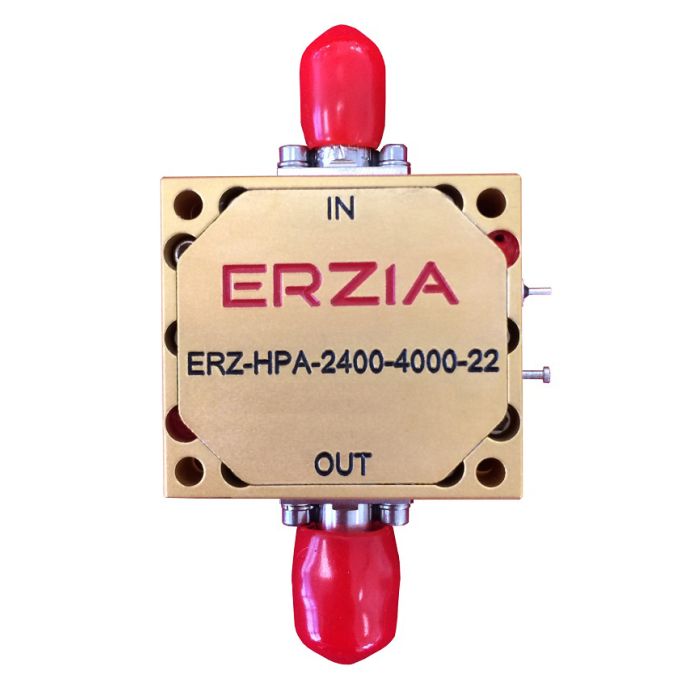

ERZ-HPA-2400-4000-22
ERZ-HPA-2400-4000-22
Erzia
Wideband High Power Amplifier
The ERZ-HPA-2400-4000-22 is a high power amplifier providing an output power of 23 dBm and a gain of 27 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 24.0000 |
| Frequency Stop (GHz) | 40.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 292 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 23 |
| Gain (dB) | 27 |
| Operating Temperature | -35°C to 85°C |
| Connectors | 2.92 mm Female |
| Product Type | High Power Amplifier |
| Dimensions | 27.2 x 30 x 18 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
