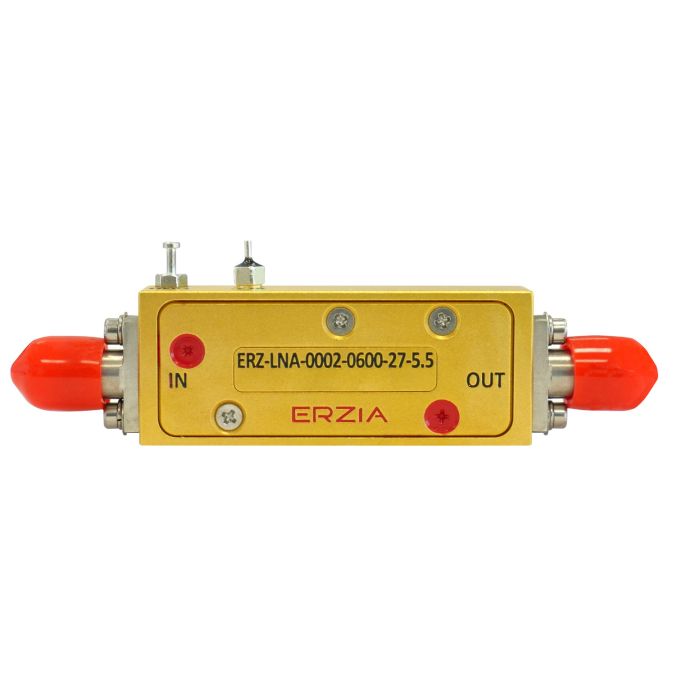

ERZ-LNA-0002-0600-27-5.5
ERZ-LNA-0002-0600-27-5.5
Erzia
Wideband Low Noise Amplifier
The ERZ-LNA-0002-0600-27-5.5 is a low noise amplifier providing a gain of 28 dB with a noise figure of 5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 0.02 |
| Frequency Stop (GHz) | 6.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 416 |
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 26 |
| Gain (dB) | 28 |
| Operating Temperature | -55°C to 85°C |
| Connectors | SMA Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 41.43 x 19.5 x 10 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
