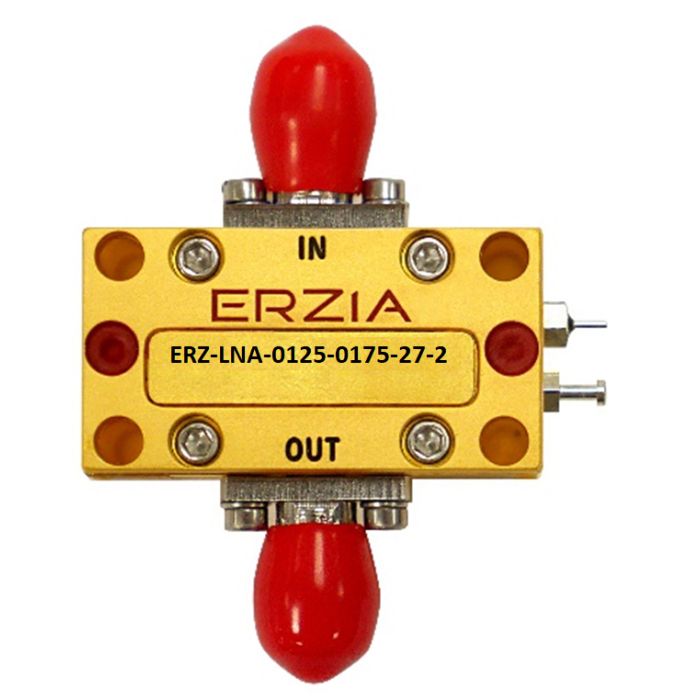

ERZ-LNA-0125-0175-27-2

ERZ-LNA-0125-0175-27-2

ERZ-LNA-0125-0175-27-2

Erzia

L Band Low Noise Amplifier

The ERZ-LNA-0125-0175-27-2 is a low noise amplifier that provides a Noise Figure below2 dB with a Gain of 27 dB
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 1.25
Frequency Stop (GHz) 1.75
Power Supply (V) 12± 3V
Current (mA) 60
Storage Temperature -55°C to 125°C
Band L Band
Output Power (dBm) 15
Gain (dB) 27
Operating Temperature -45°C to 75°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 16 x 30 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
