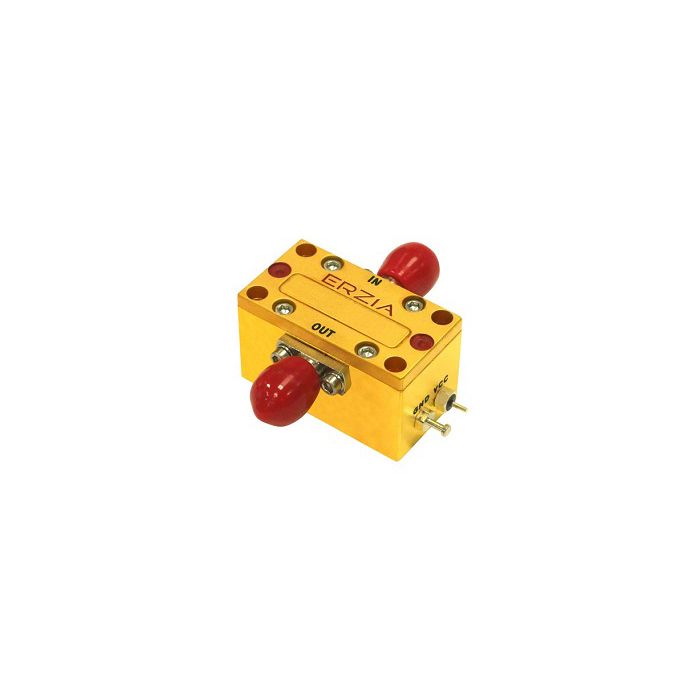

ERZ-LNA-0340-0470-23-2
ERZ-LNA-0340-0470-23-2
Erzia
C Band Low Noise Amplifier
The ERZ-LNA-0340-0470-23-2 is a low noise amplifier providing a low noise figure of 1.5 dB and a gain of 25 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 3.4 |
| Frequency Stop (GHz) | 5.0000 |
| Power Supply (V) | 12± 4V |
| Current (mA) | 83 |
| Storage Temperature | -55°C to 125°C |
| Band | C Band |
| Output Power (dBm) | 12 |
| Gain (dB) | 25 |
| Operating Temperature | -40°C to 85°C |
| Connectors | SMA Female |
| Dimensions | 30 x 30 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
