FF-36PCL
FF-36PCL
ETS-Lindgren
80 MHz to 40 GHz - FF Series Filter Foam Absorber

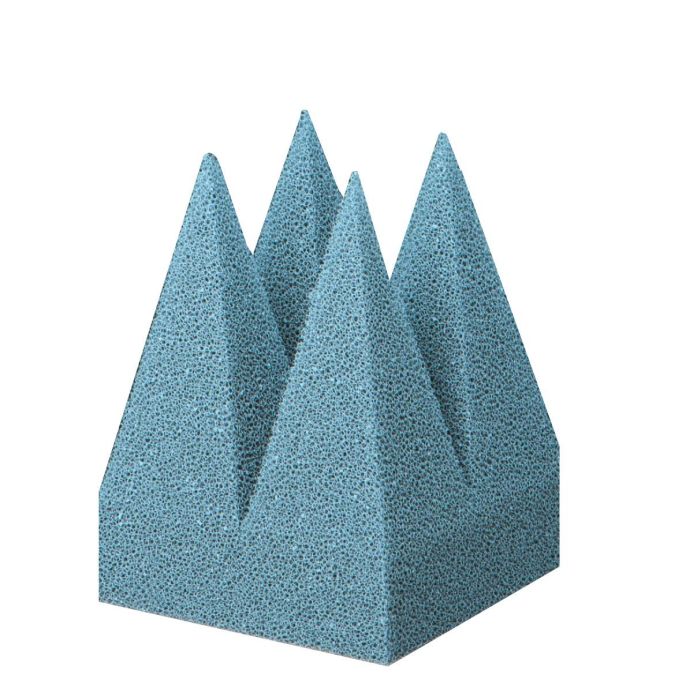

FF-36PCL Filter Foam Absorber - 80 MHz to 40 GHz
ETS-Lindgren's FF-36PCL Filter Foam/Vent Absorber is similar in appearance and geometry to conventional pyramidal materials and is tested to the same rigid specifications. Fabricated using open cell/reticulated polyurethane foam substrates, the large pore size allows for easier airflow and handles approximately 10 times more RF power than conventional absorbers with forced air. Ideal for use over air vents in anechoic chambers.
Key Features:
- Frequency Range: 80 MHz to 40 GHz
- Overall Height: 91.4 cm (35.98 in)
- Open Cell/Reticulated Foam for Enhanced Airflow
- 1.0 W/in² Power Handling (up to 10x with forced air)
- Non-Hygroscopic Substrate
- Fire Retardant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 91.4 cm (24 in x 24 in x 35.98 in) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 80 MHz |
| Standards | NRL 8093 Tests 1, 2 and 3; UL 94; DIN 4102-B2 |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
