gXOB0017 A W-band X8 MMIC multiplier 86 – 106 (81 – 110) GHz
Gotmic W-band X8 MMIC multiplier 86 – 106 (81 – 110) GHz

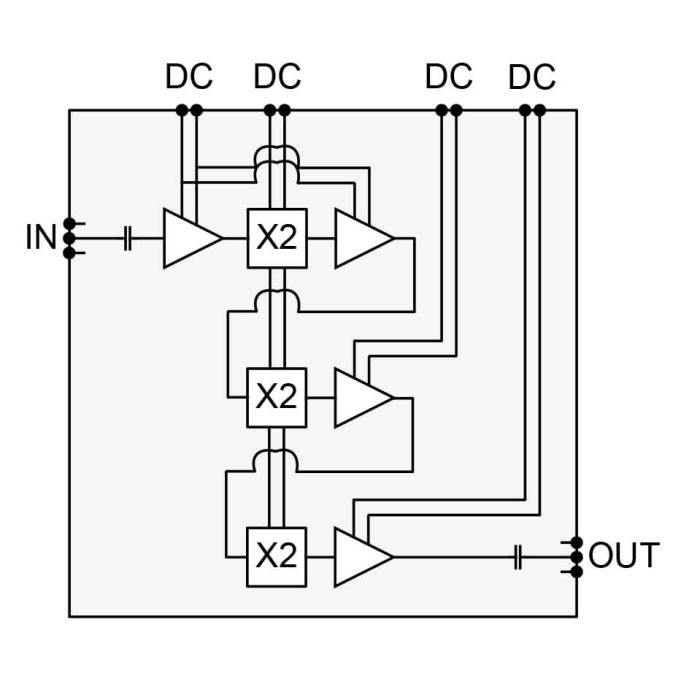

The Gotmic gXOB0017 GaAs pHEMT MMIC is a highly efficient X8 W-band multiplier ideal for point-to-point radio and radar applications. The integrated input and output buffers deliver high output power at a low drive level. At the recommended drive level of 0 dBm the output power is typically 12 dBm with better than 20 dBc harmonic isolation and 400 mW power dissipation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| Storage Temperature | -65 to +150°C |
| Maximum Frequency | 106 Ghz |
| Band | W Band |
| Minimum Frequency | 86 GHz |
| Operating Temperature | -40 to + 85°C |
| Product Type | Frequency_Multiplier |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
