gXSB0015 B E-band X6 MMIC multiplier 71 – 86 GHz
Gotmic E-band X6 MMIC multiplier 71 – 86 GHz

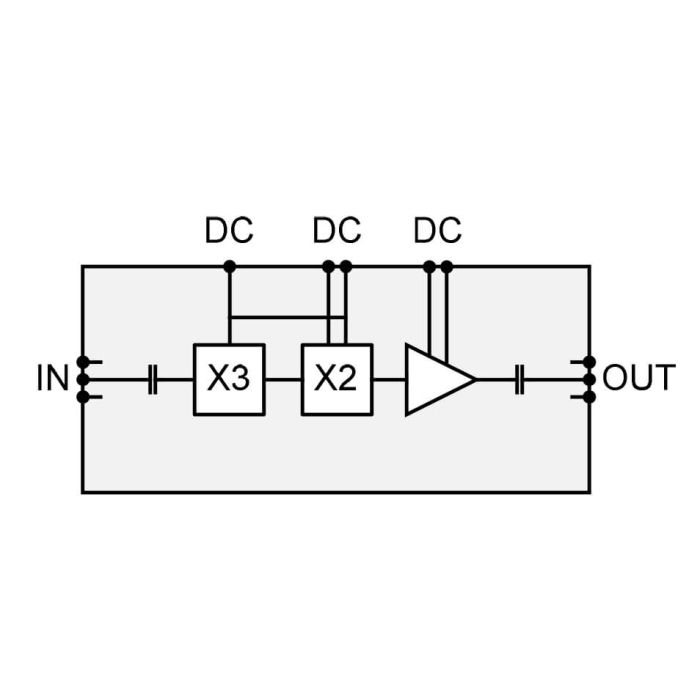

The Gotmic gXSB0015 GaAs pHEMT MMIC is an efficient X6 E-band multiplier ideal for point to point radio applications. The chip has an integrated output buffer. At the recommended drive level of 10 dBm the output power is typically 7 dBm with better than 10 dBc harmonic isolation and 300 mW power dissipation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| Storage Temperature | -65 to +150°C |
| Maximum Frequency | 86 GHz |
| Band | E Band |
| Minimum Frequency | 71 GHz |
| Operating Temperature | -40 to + 85°C |
| Product Type | Frequency_Multiplier |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
