Keysight Technologies

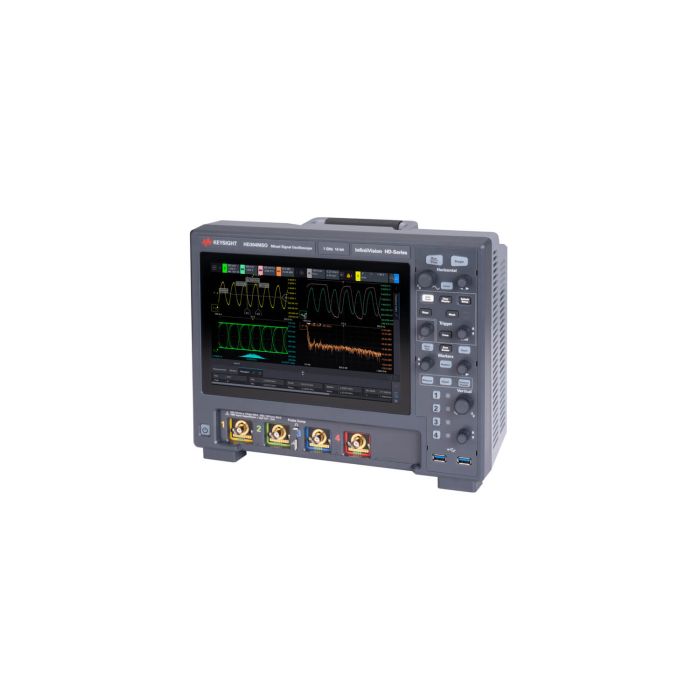

InfiniiVision HD3 Series 2 Channel Oscilloscopes

InfiniiVision HD3 Series Oscilloscopes

The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts the most impressive resolution on the market with 4x the vertical accuracy with a 14-bit ADC and up to 10x less noise than the competition.

Paired with Keysight's fast, uncompromised waveform update rate and 25x more memory, the HD3 Series can capture signals that you can’t even see on other oscilloscopes.

Portable Precision

  • Analyse the smallest signals in your design with the highest degree of accuracy
  • Highest resolution in the industry (ADC and ENOB)
  • Lowest noise front-end in class

Custom Technology

  • Custom components optimized for oscilloscope measurements
  • New deep memory architecture
  • Analyze and debug faster with hardware-based zone triggering, serial, mask, and more
  • Industry-first automatic debug software – Fault Hunter

Versatile Functionality

  • Dive deeper with more flexibility in the user interface (split grids, custom thresholds, bandwidth limiting options, and more
  • Immediate license upgrade – no return to factory
  • From power integrity to medical imaging to general debugging, the HD3 provides the highest accuracy for your most challenging measurements
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Bandwidth
Channels 2 + 16
ADC Bits 14 Bits
Max Memory Depth 100 Mpts per channel
Display Size 10.1-inch capacitive touch gesture-enabled display
Waveform Update Rate Uncompromised > 1,300,000 waveforms per second
Series HD3 Series
Dimensions 33.5 cm (13.2 in) x 26.2 cm (10.3 in) x 16.8 cm (6.6 in)
Key Features
  • 200 MHz to 1 GHz bandwidth, upgradeable
  • New custom ASIC
  • 14 bit ADC, Low-noise front-end
  • Up to 100 Mpts / channel
  • Uncompromised >1,300,000 wfms/sec update rate
Noise Floor 50 µvrms
Sample Rate 3.2 GSa/s per channel
Vertical Resolution 14 bits (up to 16 bits in high-resolution acquisition mode)
More Information
Attribute Value
Data Sheet Click here to view
