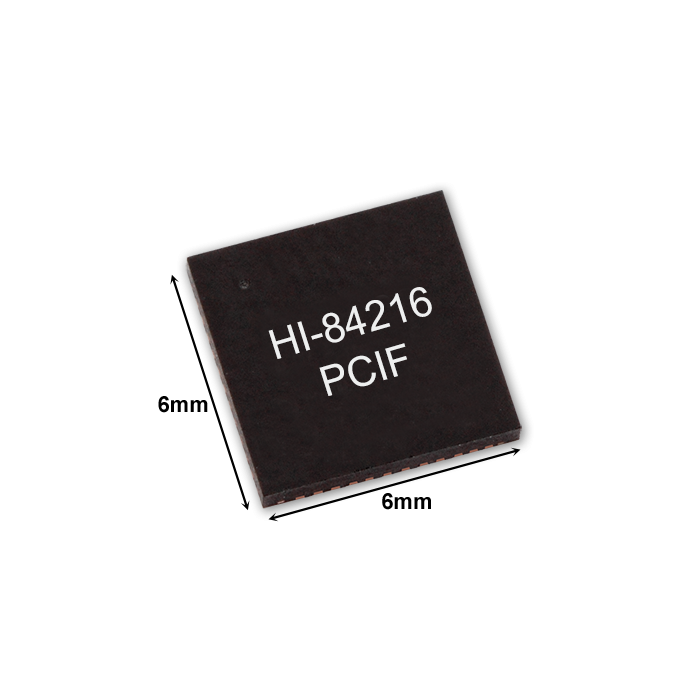

HI-84216

Holt Integrated Circuits

Programmable 16−Channel Low-Side Driver with SPI and Load Current Sensing

Skip to the beginning of the images gallery

The HI-84216 is a smart 16-channel low-side driver designed for high-reliability applications. The device uses a Serial Peripheral Interface (SPI) for intelligent switch control, monitoring and advanced diagnostics.

The HI-84216 is capable of sinking 250mA per channel with up to 4A total sink current for parallel channel operation. An 8-bit ADC provides accurate measurement of channel current and temperature while an internal PWM clock generator with 16-bit resolution provides application flexibility.

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

Specifications

More Information
Attribute	Value
VDDIO − VDD1P8	-0.3 V to +7 V
Reflow Solder Temperature	260°C
Junction Temperature	175°C
Key Features	Compact 16 channel low-side driver (6mm x 6mm) 250mA sink current per channel Sink up to 4A when all channels used in parallel Accurate current/temperature measurement Access diagnostics and program via 10 MHz SPI 0.5 Ω On-Resistance per channel < 1μA leakage current with low quiescent power Digital I/O powered with 1.8V to 5.0V Continuous Online Built-in Self-Test Host-controlled output enable pin
Storage Temperature	'65°C to +150°C

Documents

More Information
Attribute	Value
Data Sheet	Click here to view
