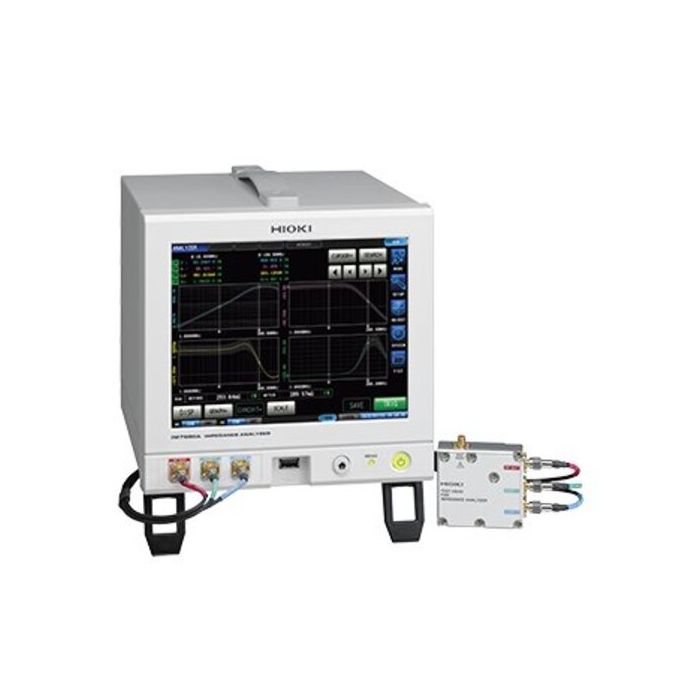

IM7580A
IM7580A
Hioki
Impedance Analyser
1 MHz to 300 MHz Measurement Frequency Impedance Analyser with 0.5 ms Test Speed and Superior Repeatability
Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7580A impedance analyser offers a top measurement time of 0.5 ms over a 1 MHz to 300 MHz frequency, and both LCR and Analyser Modes to meet applications for both high volume production inspections and research and development.
Key Features
- 1 MHz to 300 MHz testing source frequency
- Fastest test speed of 0.5 msec
- ±0.72% rdg. basic accuracy
- RF I-V method
- Half-rack size body and palm-sized test head
- Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
- Make frequency sweeps, level sweeps and time interval measurements in Analyser Mode
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. |
| Included Accessories | Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1 |
| Display | 8.4-inch color TFT with touch screen |
| Measurable Range | 100 mΩ to 5 kΩ |
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation |
| Dimensions and Weight |
Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz) |
| Basic Accuracy | Z: ±0.72 % rdg. θ: ±0.41° |
| Measurement Parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurement Speed | FAST: 0.5 ms (Analog measurement time, typical value) |
| Measurement Modes | LCR mode, Analyser mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode |
| Display Range |
Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) |
| Measurement Frequency | 1.0000 MHz to 300.00 MHz (5 digits resolution) |
| Measurement Signal Level |
Power: -40.0 dBm to +7.0 dBm |
| Output Impedance | 50 Ω |
