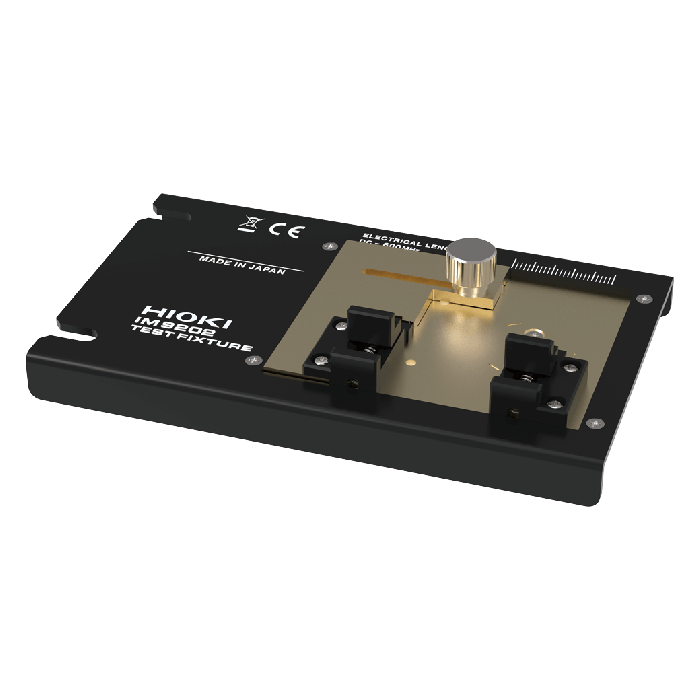

Hioki IM9202 Test Fixture | APC Technology Group

IM9202

IM9202

Hioki

Test Fixture

All-In-One Test Fixture for High Frequency 600 MHz Testing of a Diverse Range of Components

Hioki LCR Meters and Impedance Analysers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.

Key Features

  • Test fixture for Impedance Analyser IM7580 Series
  • High frequency testing up to 600 MHz
  • Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
  • Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Included Accessories H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1
Frequency Range DC to 600 MHz
Measurable DUT

LEADED

Axial
Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)
Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)
Height to lead: 2.5 mm or shorter (0.10 in. or shorter)

Radial
Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)
Lead length: 2 mm or longer (0.08 in. or longer)

SMD
Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)
Component width: 0.8 mm or longer (0.03 in. or longer)
Component height: 0.65 mm or longer (0.03 in. or longer)

Electrode Structure 2-terminal connection to side electrodes
Maximum Voltage ±42 Vpeak (AC+DC)
Supported Units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
More Information
Attribute Value
Data Sheet Click here to view
