Video Synchronisation Input Card
Video signal input module

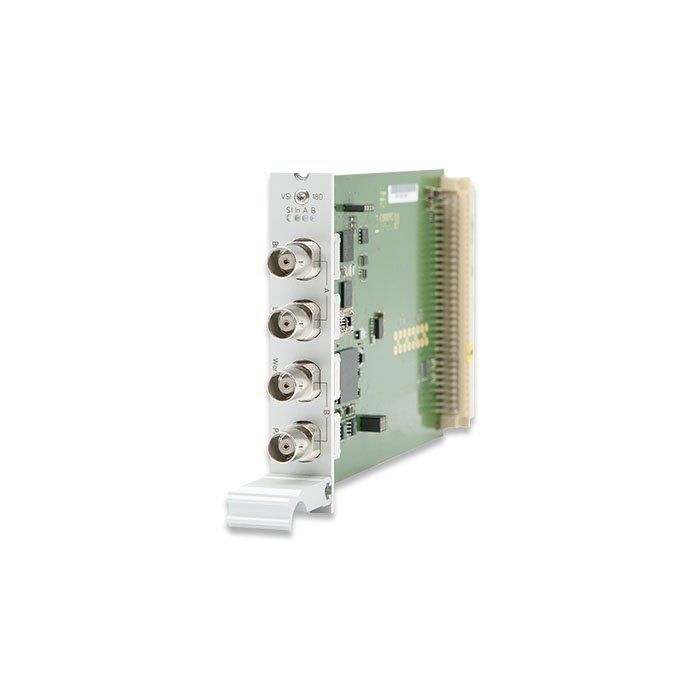

The VSI (Video Synchronisation Input) card provides video signals to an IMS clock module as reference. It can process Black Burst (PAL), LTC (Linear Time Code) and programmable Word Clock Rates.
Furthermore the board has a 1PPS input to Synchronise the receiver module.
Role as Black Burst-to-PTP converter
The IMS-VSI enables users to set up a Black Burst-to-PTP converter with a LANTIME IMS system. This requires a VSI input module and an HPS100 module in PTP Grandmaster mode. The internal clock module is Synchronised via the video input signal. The receiver module then serves the HPS100 card with an accurate and stable time base.
The VSI (Video Synchronisation Input) card provides video signals to an IMS clock module as reference. It can process Black Burst (PAL), LTC (Linear Time Code) and programmable Word Clock Rates.
Furthermore the board has a 1PPS input to Synchronise the receiver module.
Role as Black Burst-to-PTP converter
The IMS-VSI enables users to set up a Black Burst-to-PTP converter with a LANTIME IMS system. This requires a VSI input module and an HPS100 module in PTP Grandmaster mode. The internal clock module is Synchronised via the video input signal. The receiver module then serves the HPS100 card with an accurate and stable time base.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/vsi180.pdf |
| Relative Humidity | Max. 85% |
| RoHS | Yes |
| Reference Options |
Black Burst (PAL SMPTE259M/ITU-R BT.470-6) Input with VITC reader (SMPTE12M-1/SMPTE ST309M)
Black Burst (PAL) Input with Prescaler mode (no VITC, frequency only) Linear Time Code LTC Reader (25 FPS as per SMPTE ST12) Word Clock Input with programmable frequency range 1PPS input |
| Status info |
Status info by 4 LED light indicators (2mm light pipes):
|
| Electrical Connectors | 4 x BNC female connector |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Current Consumption | 5 V, +-5%, 250 mA |
| Key Features |
|
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
