LANTIME M250

LANTIME M250

Meinberg

High-Performance NTP Time Server in a Compact Chassis

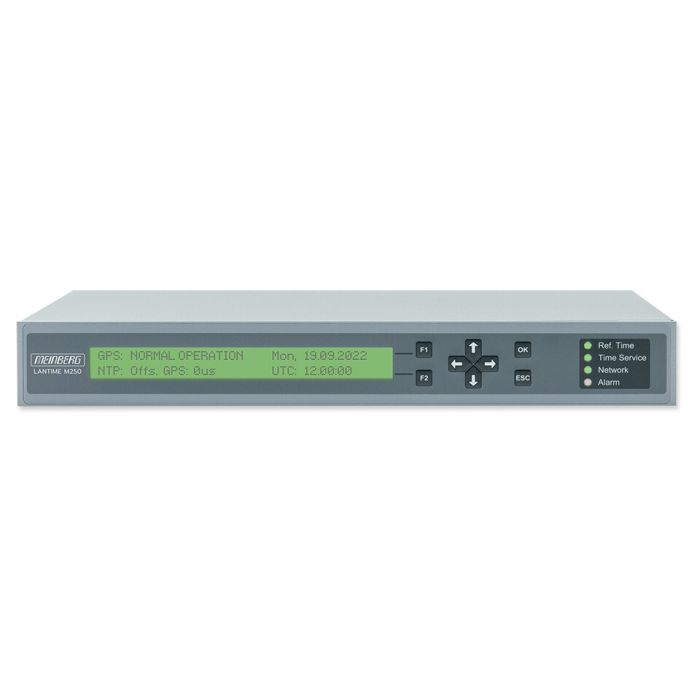

main product photo

The LANTIME M250 network time server is designed by Meinberg to offer superior NTP server performance in a medium or small-sized network environment. Constructed to order with a selection of signal receivers to enable you to synchronise your time server to the remote timing signal that you trust most. The LANTIME M250 can be built to support timing signals from any of the main satellite navigation systems in operation (GPS, Galileo, BeiDou, GLONASS) or from a long-wave timing signal radio service (e.g MSF or DCF77).

LANTIME OS

Meinberg's custom Linux-based LANTIME OS, a slim and secure operating system developed especially for the needs of a time server, powers the LANTIME M250 under the hood, providing access to all the security, network, and monitoring features that you could ever need from an enterprise-grade synchronisation appliance.

LANTIME Configuration and Monitoring

The powerful Web UI enables you to quickly and easily configure and monitor your LANTIME device, while the CLI provides power users with unparalleled flexibility and efficiency. The comprehensive LANTIME OS REST API provides a complete toolset for your network orchestration and automation needs, and SNMP support allows you to integrate your Meinberg systems into your existing network management system.

Oscillator Option

The LANTIME M250 is shipped as standard with a “TCXO” (temperature-controlled crystal oscillator), which provides excellent holdover performance if your server loses synchronisation with its upstream reference for any reason. The LANTIME M250 may also be shipped on request with a more powerful holdover solution (OCXO LQ/SQ/MQ/HQ). Please speak with a member of APC's specialist time synchronisation team for further information.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Manual URL https://www.meinbergglobal.com/download/docs/manuals/english/setup-guide_d.pdf
Technical Support Meinberg offers free lifetime technical support via telephone or e-mail. Additonaly, APC's own team of time synchronisation specialists are available for first line technical support.
Power Consumption 20W
Form Factor Desktop housing
Relative Humidity Max. 85%
RoHS Yes
Control elements Eight push buttons to set up basic network parameters and to change receiver settings
Status info

Four Bicolor LEDs showing the status of:

  • Reference time
  • Time service
  • Network
  • Alarm
Network Interface

1 x 10/100/1000Base-T RJ45

Up to 25,000 NTP requests/second
Universal Serial Bus (USB) Ports

1 x USB port on the front panel for:

  • Installing firmware upgrades
  • Performing backups and restoration of configuration files
  • Copying security keys
  • Locking & unlocking front buttons
CPU
  • Intel® Atom™ Processor E Series (2 Cores, 1.33GHz, TDP 3W)
  • Main memory: onboard 2 GB
  • Cache memory: 1MB 2nd Level Cache
  • Flash disk: 4 GB
Operating System of the SBC Custom LANTIME OS based on Linux 4.x LTS Kernel
Network protocols OSI Layer 4 (transport layer)
  • TCP
  • UDP
Network protocols OSI Layer 7 (application layer)
  • Telnet
  • FTP
  • SSH (including SFTP, SCP)
  • HTTP
  • HTTPS
  • syslog
  • SNMP
Internet Protocol (IP)
  • IPv4
  • IPv6
Network Autoconfiguration Support
  • IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131)
  • IPv6: Dynamic Host Configuration Protocol - DHCPv6 (RFC 3315) and Autoconfiguration
  • Networking - AUTOCONF (RFC 2462)
Network Time Protocol (NTP)
  • NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905)
  • SNTP v3 (RFC 1769), SNTP v4 (RFC 4330)
  • MD5 / SHA-1 authentication and autokey key management
Time Protocol (TIME) Time Protocol (RFC 868)
IEC 61850 Synchronisation of IEC 61850-compliant devices using SNTP
Hypertext Transfer Protocol (HTTP) HTTP(S) for web interface and REST API access
Secure Shell (SSH)
  • SSH v1.3
  • SSH v1.5
  • SSH v2 (OpenSSH)
Telnet Telnet (RFC 854-RFC 861)
Scope of supply Included in delivery is a Meinberg outdoor antenna incl. mounting kit, pre-assembled antenna cable, CAB-CONSOLE-RJ45 cable for initial setup and documentation on USB storage.
Firmware Updates Firmware is field-upgradeable, updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product.
WEEE status of the product This product is handled as a B2B category product. For disposal, it must be returned to the manufacturer to ensure WEEE compliance. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will cover the costs for the waste disposal itself
Key Features
  • Selectable Reference Sources:
    • GPS: Satellite receiver for the Global Positioning System
    • GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
    • GNS-UC: GPS and Galileo satellite receiver with up-converter for Meinberg GPS antenna/converter
    • PZF: DCF77 correlation receiver for middle Europe
    • MSF: Long wave recevier for Great Britain
  • Synchronises NTP-compatible clients with support for NTP, SNTP, and NTS
  • Web interface that is both powerful and easy to use
  • Comprehensive networking support, including full HTTPS encryption for Web Interface and REST API with TLS certificate management
  • USB port for installation of firmware updates and backup/restore of configuration and log files
  • Command line interface for advanced power users with absolute control over every facet of the server's functionality
  • Support for syslog, SNMP, and SMTP for comprehensive event logging, network integration, and notification functionality
  • GNS models include Multi-GNSS antenna for reception of GPS, Galileo, BeiDou, and GLONASS signals
  • GPS and GNS-UC models include Meinberg IF antenna of reception of GPS signals and, with GNS-UC models, also Galileo signals
Operating Temperature 0 - 50°C
Power Supply

AC/DC power supply (standard)

Rated voltage range: UN = 100-240 V AC (50-60 Hz) / 100-240 V DC
Max. voltage range: Umax = 90-264 V AC (47-63 Hz) / 100-250 V DC

Low DC (option)

Rated voltage: UN = 48 V DC
Max. voltage range: Umax = 20-60 V DC
Dimensions 335 x 45 x 240mm
Display LC-Display, 2 x 40 Characters, with Backlight
