Meinberg microSync RX/TRX Powerful PTP Grandmaster & NTP Server | APC

microSyncTRX

microSync TRX

Meinberg

Powerful PTP Grandmaster and NTP Server

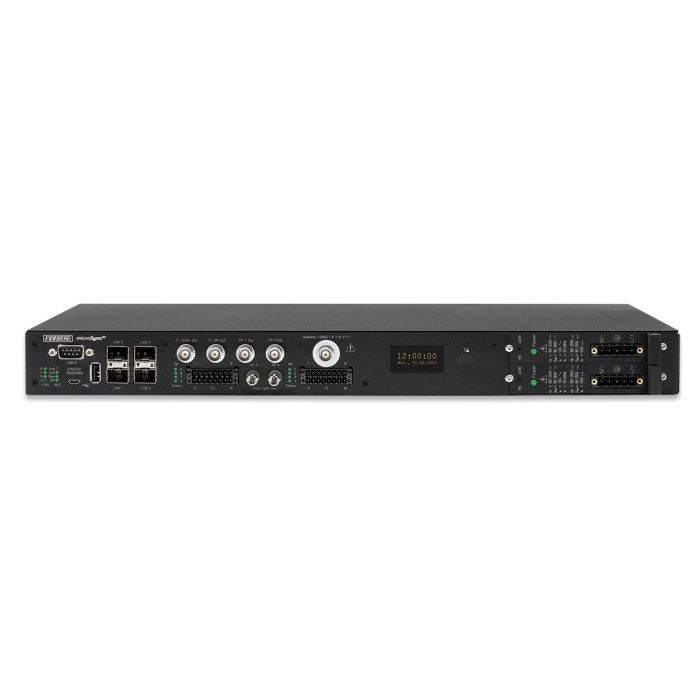

Meinberg's microSync series is a range of reliable, versatile synchronization solutions for a diverse range of industries and applications. The microSyncRX and microSyncTRX servers are efficient, 19" rack-mounted time servers with a wealth of features, among them an impressive, densely-packed array of inputs and outputs and optional power supply redundancy. Key Features

All microSyncRX and microSyncTRX models offer key features such as multiple programmable output signals (two over fibre-optic ST connectors), four Gigabit Ethernet interfaces and the ability to synchronize both NTP and PTP devices.

With two of the network ports being PTP-capable in both Master and Slave mode, the microSyncRX and microSyncTRX models are operable as powerful GNSS-synchronised PTP Grandmasters that offer a high level of accuracy and support all major PTP profiles: in addition to the standard IEEE1588 profiles it also supports power, telecom (frequency and phase profiles), SMPTE 2059-2, AES67/RAVENNA and IEEE802.1AS profiles.

The sheer diversity of outputs and interfaces makes the microSyncRX and microSyncTRX ideal for a large range of industries and applications. Various different models featuring different inputs, outputs, and GNSS receivers are available to suit specific application demands.

GNSS Receivers

A microSync system can be fitted with a GPS-only receiver, a combination GPS/Galileo receiver, or a multi-GNSS solution capable of supporting all four of the main GNSS constellations: GPS, Galileo, BeiDou, and GLONASS.

Inputs/Outputs

In addition to two custom 16-pin DFMC connectors providing a multitude of programmable pulse outputs with RS-422 and optocoupler signaling, the various models also provide different options in terms of I/O over BNC connectors, with various combinations of AM time code outputs, programmable pulse outputs, 10 MHz TTL inputs/outputs, 10 MHz sine-wave outputs, PPS inputs all possible.

OLED Display

microSyncRX models can optionally be fitted with an OLED display on the same side as the connectors, while the corresponding microSyncTRX models are equipped with an OLED display on the opposite side to the connectors. This provides flexibility for a diverse range of rack configurations and arrangements.

The OLED display provides an easily readable, well-lit status readout at all times, showing the current time & date, the clock & receiver status, and the current network configuration.

In conjunction with the rotary controller, the OLED display also provides an easy method of configuring the port LAN0 (IP address, netmask, gateway, and DHCP) for use as a network-reachable management port during set-up.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Manual URL https://www.meinbergglobal.com/download/docs/manuals/english/microsync.pdf
Power Consumption Maximum 30 W
Form Factor Chassis Type: 19", 1U 444 mm x 248 mm x 43 mm (17.48 in x 9.76 in x 1.69 in (W x D x H) Material: Sheet steel
Relative Humidity 5 % to 95 % at 40 °C, non-condensing
RoHS Yes
Network Interface

4x SFP connectors with support for up to Gigabit Ethernet

LAN 0, LAN 1: 10/100/1000Base-T (RJ45) or 1000Base-FX (FO)
Management, NTP

LAN 2, LAN 3: 10/100/1000Base-T (RJ45) or 1000Base-FX (FO)
Management, NTP, PTP (Master and Slave)

Universal Serial Bus (USB) Ports

USB Type-A, usable for the following purposes:

  • Backing up and restoring a microSync configuration (or rolling a shared configuration out to multiple devices)
  • Backing up log files
  • Uploading and downloading cryptographic certificates
  • Installing firmware updates
  • Restoring factory settings using a specially prepared 'USB key'
Internet Protocol (IP) IP30
WEEE status of the product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
BNC Connectors 4 x BNC female connectors for different output signals - e.g. programmable pulses, frequency synthesizer, AM time code
Synchronous Ethernet Master and Slave Capability Compliant to ITU-T G.8261, G.8262 and G.8264 Ethernet Synchronization Messaging Channel (ESMC)
Network protocols IPv4, IPv6 NTPv3, NTPv4 PTPv2 IEC 62439-3 (PRP) DHCP, DHCPv6 DSCP IEEE 802.1q VLAN filtering/tagging IEEE 802.1p QOS SNMPv1/v2/v3 Remote Syslog Support (UDP) LDAP, TACACS+, RADIUS authentication
Optical Outputs 2 x programmable pulse outputs, fiber-optic ST connectors
Oscillator Options

OCXO SQ
1 Day Holdover Performance: ± 65 µs
1 Year Holdover Performance: ± 4.7 s

OCXO HQ
1 Day Holdover Performance: ± 10 µs
1 Year Holdover Performance: ± 788 ms

OCXO DHQ
1 Day Holdover Performance: ± 4.5 µs
1 Year Holdover Performance: ± 158 ms

Compliances
  • CB Scheme
  • CE
  • FCC
  • UL
  • CSA
  • WEEE, Waste of Electrical and Electronic Equipment
  • RoHS, Restriction of Hazardous Substances
  • REACH, Registration, Evaluation, Authorization and Restriction of Chemicals
Key Features
  • High-performance NTP Server (NTP & SNTP v2, v3, v4)
  • Versatile and easy-to-use Web Interface for configuring and monitoring the status of your microSync system
  • PTPv2 time server with support for all major PTPv2 profiles
  • Optional power supply redundancy with support with AC and DC power sources
  • Different oscillator options for advanced holdover performance
  • Many models include an OLED display with a rotary controller for initial network set-up and status monitoring.
  • All microSync models offer a wide range of multiple output signals, allowing devices to be synchronized over a network via NTP or PTP or directly "on the wire" using a variety of electrical and optical signals.
Storage Temperature -30 °C to 70 °C (-22 °F to 158 °F)
Interface Single serial RS-232 interface
Display

OLED display (present on optional microSync RXmodels and all microSync TRX  models)

Indicates: Time and date, Status of synchronization source, Firmware version, Model and serial number

More Information
Attribute Value
Data Sheet Click here to view
