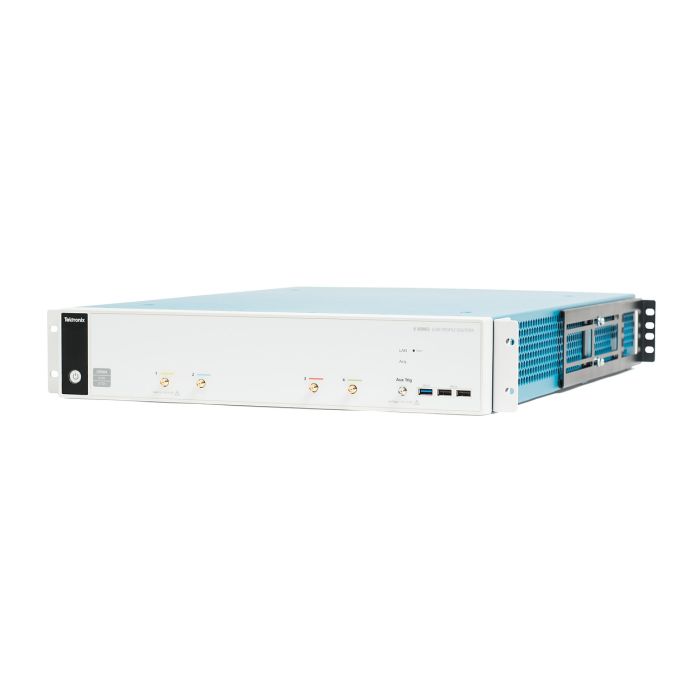

LPD64

LPD64

Tektronix

6 Series Low Profile Digitizer, 2U rack ready, 1GHz to 8 GHz, 4 SMA inputs with low noise, 12-bit ADCs, 25GS/s and 125Mpts record length, 1-year warranty

The 6 Series Low Profile Digitizer (LPD64) represents the highest performance digitizer on all channels in its class. This high-speed digitizer has the functionality of a digitizer and the power of an oscilloscope, sharing a similar hardware platform as the 6 Series MSO.

The transition from a 6 Series MSO benchtop oscilloscope to a Low Profile Digitizer has never been easier for R&D engineers needing to move their code, test work and platform performance into manufacturing and automation. Both products support the same user interface, remote capability, performance characteristics and programming back-end to make this transition as simple and easy as possible.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

More Information
Attribute Value
Manufacturer Product Family 6 Series Low Profile Digitizer
Key Features
  • 25 GS/s on all 4 channels
  • DC to 8 GHz on all 4 channels
  • 12-bit analogue-to-digital converters
  • Up to 1 billion samples (1 Gpt) on all 4 channels
  • Up to 2 GHz RF DDC bandwidth on all channels
  • 2U rack ready digitizer
  • Best in class low noise and ENOB
Sample Rate 25 GS/s
Bandwidth DC to 8 GHz
Channels N/A
Series 6 Series Low Profile Digitizer
