POC-W212C
POC-W212C
Advantech

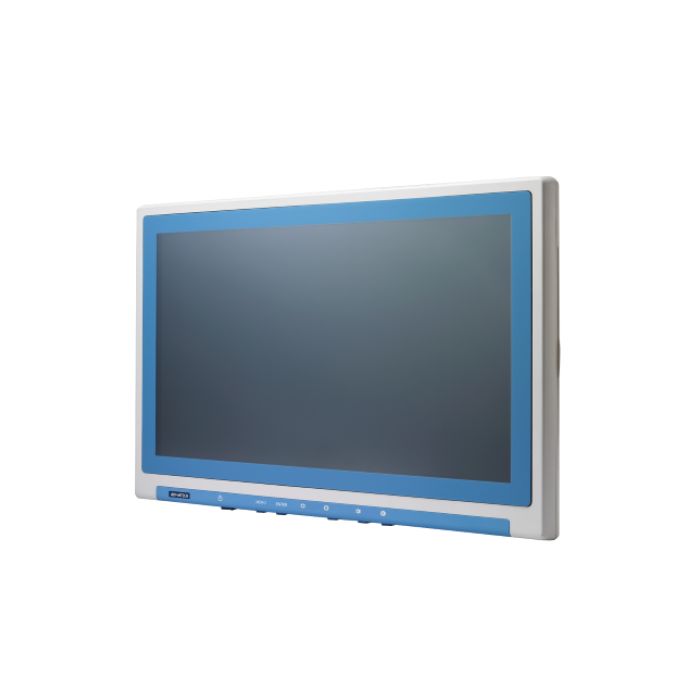

21.5" widescreen medical grade computer with fanless and slim design
POC-W212C runs on an Intel Celeron ® J1900 Quad-core processor and chipset capable of displaying crystal clear images on its 21.5” wide-screen display. The system is highly integrated and provides a rich selection of high speed I/O connectors, user-friendly function keys, and customizable features. POC-W212C, housed in a slim 6.5 cm casing, weighs only 7 kg. The system optionally accommodates a 2-points resistive touchscreen for ease of use.
Key Features
- Runs on an Intel ® Celeron ® J1900 Quad-core processor with a fanless, low power profile
- Ultra-thin display, only 65 mm slim at its widest point
- Capable of displaying crystal clear images on its 21.5" wide-screen display
- Isolated design provides unique electric leakage protection for COM ports and LAN ports
- UL60601-1/EN60601-1 third edition certified ensures highest levels of safety and reliability
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 550 x 360 x 65 mm |
| Operating System | Windows 7, WIN8 Embedded Standard, Windows 8 industry Pro, Windows 10 |
| Power |
AC/DC adapter (Sinpro Model no.HPU101-107)
Input voltage: 90 - 260 VAC, 1.35 - 0.5 A, 47 - 63 Hz Output voltage: +18 VDC, 5.55 A max. (100 watts) |
| Touchscreen | Optional analogue resistive or projected capacitive 2-point. With continuous resolution, 80-90% light transmission, USB interface and durability of 35 million to >50 million touches. |
| VGA Port | 1.0000 |
| CPU | Intel® Celeron® J1900 Quad Core 2.0GHz |
| Primary Storage | 1 x 2.5" SATA |
| Display Max Resolution |
1920 x 1080
16.7 M colors (6-bits+A-FRC) Luminance: 250 cd/m2 LED backlight 1000:1 contrast ratio |
| USB 3.0 | 2 |
| IP Rating |
IP65 (front panel)
IPX1 (system) |
| LAN | 2 x Gigabit Ethernet (isolated) interfaces (RJ-45) |
| Display Size | |
| Memory | 1 x DDR3L 204-pin DIMM and Max. Capacity 8GB |
| Graphics Controller | Intel® HD Graphics |
| HDMI | 1 |
| Expansion Slot |
Mini PCIe (mSATA) x 2 (Mini PCIe: 1 full-size, 1 half-size)
1 x PCIe (x4) |
| Speakers | 2 x 1.5W |
| WLAN and Bluetooth | Optional integrated wireless 802.11 a/b/g/n connection & internal antenna and Integrated Bluetooth v4.0. |
| Backup Battery | Optional 3S2P 4200mAH, supports 0.5 hr backup operation. Adding the battery will prevent the PCIe card from being inserted |
| Certifications | UL60601-1/EN60601-1, CE & FCC Class B certified, CCC |
| USB 2.0 type A | 2 (optional extra 2 USB ports by side door) |
| Serial Port | 2 x RS-232/422/485 (isolated) serial port |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
