POC-W243
POC-W243
Advantech

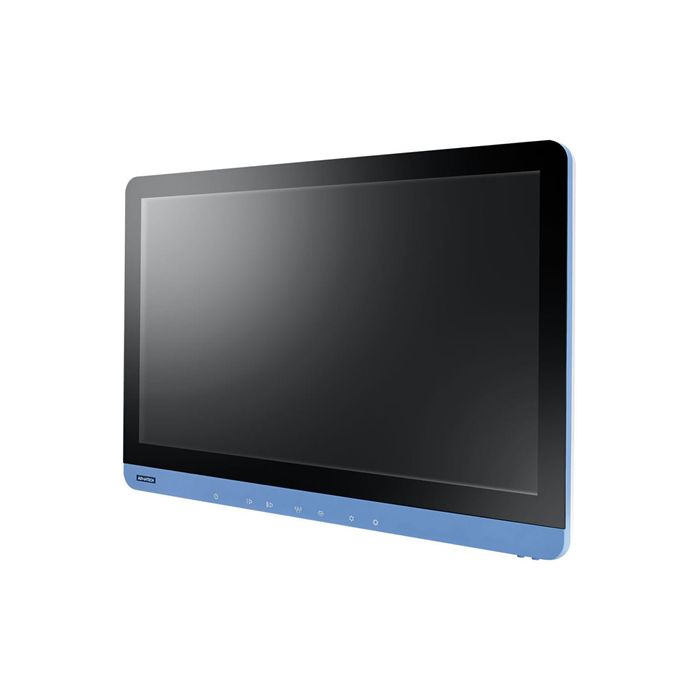

24" widescreen medical grade computer with IPS TFT display and Intel Core i7 6th generation processor+K7:AV7
24" Widescreen Medical Grade Computer with IPS TFT Display and Intel Core i7 6th Generation Processor. POC-W243 is equipped with an integrated SSD that facilitates real-time data processing and storage. Compliant with IEC 60601-1 medical safety standards for electrical devices, POC-W243 terminals are built for reliable operation in a wide range of healthcare environments.
Moreover, POC-W243 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Key Features
- Runs on an Intel® Core™ 6th generation processor with a fanless, high performance profile
- 24" full HD resolution, IPS LCD with edge to edge, bezel-less design
- USB 3.0 and PCIex4 expansion slot, mini PCIe slot x 2
- Offers a multi-touch option to deliver a truly unmatched touchscreen experience
- IP54 enclosure to protect against dust and water splashing for ease of cleaning
- Isolated design provides unique electric leakage protection for COM ports, and LAN ports, and optional USB port
- Optional Bluetooth, RFID inner WLAN module, Li-ion battery pack, and auto-focus 5M pixel camera and DICOM preset
- Support Intel® firmware trusted platform module (TPM) with Intel® Platform Trust Technology (Intel® PTT)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 583 x 386 x 69 mm |
| Operating System | Windows 7/ Windows 8.1 Industry Pro/ Windows 10 IoT |
| Power |
DC model: AC/DC adapter (Sinpro Model no. HPU101-107)
Input voltage: 90 - 260 VAC, 1.35 - 0.5 A, 47 - 63 Hz Output voltage: 18 VDC, 5.55A Max. (100 watts) |
| Touchscreen | Optional projected capacitive 10-points (Clear or AG), with continuous resolution, 80-90% light transmission, USB interface and durability >100 million touches. |
| Camera | Optional auto-focus 5M pixel camera |
| Smart Card Reader | Optional, complies with ISO7816-1,2,3,T=1 and T=0 protocol |
| CPU |
Supports Intel® PTT Technology
Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz) Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz) Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz) |
| Primary Storage | 128GB SSD |
| Display Max Resolution |
1920 x 1080
16.7 M colors (6-bits+A-FRC) Luminance: 250 cd/m2 LED backlight 1000:1 contrast ratio |
| USB 3.0 | 2 x USB 3.0 ports (rear) |
| IP Rating |
IP54, Alcohol resistance for cleaning purposes (system)
IP65 (front panel) |
| LAN | 2 x Gigabit Ethernet (1.5KV isolated) interfaces (RJ-45) |
| Mounting |
VESA 100 x 100mm
VESA 75 x 75mm |
| Display Size | |
| Memory | DDR4-1666/2133 SODIMM (up to 32GB) |
| Graphics Controller | Intel HD Graphics 520/510 |
| G-Sensor | 2g/±4g/±8g/±16g, 6D/4D orientation detection |
| Secondary storage (optional) | 2.5” SATA HDD instead of SSD (ask for details), Mini PCIe mSATA |
| HDMI | 1 x HDMI max resolution 4096 x 2304 @ 24Hz |
| Display port | 1 x DP max resolution 4096 x 2304 @ 60Hz |
| Expansion Slot |
2 (Mini PCIe: 1 full-size, 1 half-size)
1x PCIe (x4) slot (Max. card length: 167.65mm) (Supports Gen 1/2/3) |
| Speakers | 2 x 2W |
| RFID reader | Optional 13.56MHz, ISO-15693, ISO-14443A, ISO-14443B |
| WLAN and Bluetooth | Optional. Qualcomm Atheros Dual-band (2.4/5GHz) 802.11 a/b/g/n/ac 2Tx/2Rx WiFi & Bluetooth v4.1 |
| Backup Battery | Optional. 3S1P 1750mAH, supports 0.5hr backup operation (adding the battery will shorten available PCIe x4 slot space inserted) |
| Certifications | EN60601-1 Edition 3.1 compliance, UL60601-1 Edition 3.1, and CE & FCC Edition 4.0 Class B certified |
| USB 2.0 type A |
2 x USB 2.0 ports (front)
2 x USB 2.0 ports (rear) |
| Serial Port | 2 x RS-232/422/485 (1.5KV isolated) |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
