POC-W242
POC-W242
Advantech

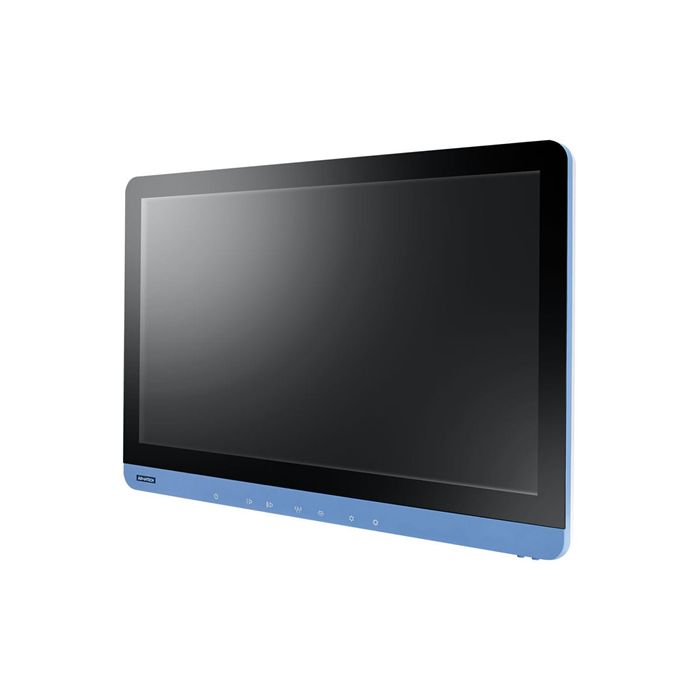

24" widescreen medical grade computer with IPS TFT display
POC-W242 is a 24" medical-grade computer with the latest computing capabilities and wide-viewing angles in the slim profile. The system is fanless for quiet operation and energy efficiency. It delivers high-performance with an Intel® Core™ i7/i5 4th generation or Celeron® J1900 Quad-Core processor. With IPS (in-place switching) display, customers can experience stunning images from any angle. Even with a 24" display, the entire unit weighs less than 8 kg and has a narrow profile depth of only 7 cm.
POC-W242 has an IP54-rated enclosure providing control against bacteria. The point-of-care terminal has rich connectivity profile which supports four USB 3.0, and one VGA and HDMI. It's also equipped with two mini PCIe and one PCIe x4 slots for extention cards. This unit is suited to ideal for radiology and endoscope applications.
Key Features
- Runs on an Intel® Core™ i7/i5 4th generation or Celeron® J1900 Quad-Core processor with a fanless, high performance profile
- 24" full HD resolution, IPS LCD with edge to edge, bezel-less design
- USB 3.0 and PCIex4 expansion slot and mini PCIe slot x 2
- Offers a multi-touch option to deliver a truly unmatched touchscreen experience
- IP54 enclosure to protect against dust and water splashing for ease of cleaning
- Isolated design provides unique electric leakage protection for COM ports, and LAN ports, and optional USB port
- Optional Bluetooth, RFID inner WLAN module, Li-ion battery pack, and auto-focus 5M pixel camera and DICOM preset
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 583 x 386 x 69 mm |
| Operating System | Windows 7, WIN 8 Embedded Standard, Windows 8 industry Pro, Windows 10 |
| Power |
AC/DC adapter (Sinpro Model no.HPU101-107)
Input voltage: 90 - 260 VAC, 1.35 - 0.5 A, 47 - 63 Hz Output voltage: +18 VDC, 5.55 A max. (100 watts) |
| Touchscreen | Optional analogue resistive or projected capacitive 10-point. With continuous resolution, 80-90% light transmission, USB interface and durability of 36 million to >100 million touches. |
| VGA Port | 1.0000 |
| Smart Card Reader | Optional, complies with ISO7816-1,2,3,T=1 and T=0 protocol |
| CPU |
Intel® Core i7 4650U, 1.7 GHz (up to 3.30 GHz)
Intel® Core i5 4300U, 1.9 GHz (up to 2.90 GHz) Intel® Celeron® J1900 Quad Core 2.0 GHz |
| Primary Storage | 1 x 2.5" SATA or 1 x 2.5" SSD |
| Display Max Resolution |
1920 x 1080
16.7 M colors (6-bits+A-FRC) Luminance: 250 cd/m2 LED backlight 1000:1 contrast ratio |
| USB 3.0 | 2 x USB 3.0 ports (rear) |
| IP Rating |
IP54, Alcohol resistance for cleaning purposes (system)
IP65 (front panel) |
| LAN | 2 x Gigabit Ethernet (isolated) interfaces (RJ-45) |
| Display Size | |
| Memory |
Up to 16GB DDR3L 1600/1333MHz SDRAM
2 x DDR3L 204-pin DIMM and Max. Capacity 8GB (up to 4GB per each SODIMM; same capacity for each DIMM if using Intel Celeron processor) |
| Graphics Controller | Intel HD Graphics 5000/4400 |
| HDMI | 1 |
| Expansion Slot |
2 (Mini PCIe: 1 full-size, 1 half-size)
1x PCIe (x4) slot |
| Speakers | 2 x 1W |
| RFID reader | Optional 13.56 MHz with ISO-15693 & ISO-14443A/B certifications and active tag function |
| WLAN and Bluetooth |
Optional integrated wireless 802.11 a/b/g/n connection & internal antenna
|
| Backup Battery | Optional 3S2P 4200mAH, supports 0.5 hr backup operation |
| Certifications | CE,FCC Class B approval, UL60601-1,EN60601-1 approved, RoHS, CCC; UL2054, UN38.3 for battery cell |
| USB 2.0 type A |
2 x USB 2.0 ports (front)
2 x USB 2.0 ports (rear) |
| Serial Port | 1 x RS-232/422/485 (isolated) and 2 x RS-232 serial isolated port; 1 x RS-232 serial port (Reserved) |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
