POC-WP243
POC-WP243
Advantech

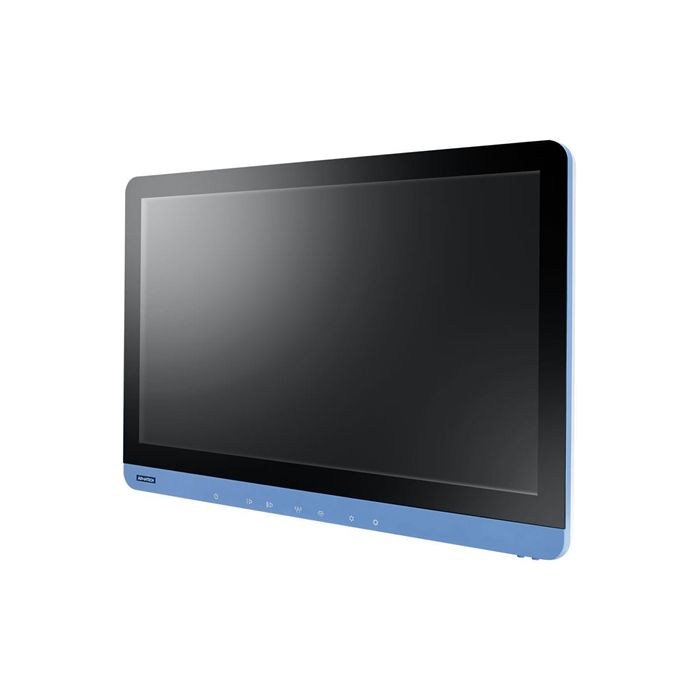

24" widescreen medical grade computer with IPS TFT display and Intel 6th generation processor
24" Widescreen Medical Grade Computer with IPS TFT Display and Intel 6th Generation Processor. POC-WP243 is equipped with an integrated SSD that facilitates real-time data processing and storage. Compliant with IEC 60601-1 medical safety standards for electrical devices, POC-WP243 terminals are built for reliable operation in a wide range of healthcare environments.
Moreover, POC-WP243 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Key Features
- Runs on Intel® 6th generation, Skylake processor with a fanless, high performance profile
- 24" full HD resolution, IPS LCD with edge to edge, bezel-less design
- USB 3.0 and PCIex4 expansion slot, mini PCIe slot x 2
- Offers a multi-touch option to deliver a truly unmatched touchscreen experience
- IP54 enclosure to protect against dust and water splashing for ease of cleaning
- Isolated design provides unique electric leakage protection for COM ports, and LAN ports, and optional USB port
- Optional DVD, Bluetooth, RFID, inner WLAN module, auto-focus 5M pixel camera, IEEE1394 and M.2 SSD
- Support Intel® firmware trusted platform module (TPM) with Intel® Platform Trust Technology (Intel® PTT)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 583 x 386 x 69 mm |
| Operating System |
Windows 7/ Windows 8.1 Industry Pro/ Windows 10 IoT
Windows 10 IoT |
| Power |
Input voltage: 100 - 240 VAC , 47Hz to 63Hz, Maximum output power 150W
Output voltage: 12.0 V ± 2%, 0A to 8.30A (at convection) |
| Camera | Optional auto-focus 5M pixel camera |
| Smart Card Reader | Optional, complies with ISO7816-1,2,3,T=1 and T=0 protocol |
| CPU |
Supports Intel® PTT Technology
Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz) Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz) Intel® Celeron® Processor 3955U (2M Cache, 2.00 GHz) Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz) Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz) Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz) Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz) |
| Primary Storage | 128GB SSD |
| Display Max Resolution |
1920 x 1080
16.7 M colors (6-bits+A-FRC) Luminance: 250 cd/m2 LED backlight 1000:1 contrast ratio |
| USB 3.0 | 2 x USB 3.0 ports (rear) |
| IP Rating |
IP54 (system)
IP65 (front panel) |
| LAN | 2 x Gigabit Ethernet (1.5KV isolated) interfaces (RJ-45) |
| Mounting |
VESA 100 x 100mm
VESA 75 x 75mm |
| Display Size | |
| Memory |
DDR4 2133 SODIMM (up to 32GB)
2 x DDR4 SODIMM slot (default 4GB; Up to 16GB) |
| Graphics Controller |
Intel HD Graphics 520/510
Intel HD Graphics 620/610 |
| G-Sensor | 2g/±4g/±8g/±16g, 6D/4D orientation detection |
| Secondary storage (optional) | 2.5” SATA HDD instead of SSD (ask for details), Mini PCIe mSATA |
| HDMI | 1 x HDMI max resolution 4096 x 2304 @ 24Hz |
| Display port | 1 x DP max resolution 4096 x 2304 @ 60Hz |
| Expansion Slot |
2 (Mini PCIe: 1 full-size, 1 half-size)
1x PCIe (x4) slot (Max. card length: 167.65mm) (Supports Gen 1/2/3) |
| Speakers | 2 x 2W |
| RFID reader | Optional 13.56MHz, ISO-15693, ISO-14443A, ISO-14443B |
| WLAN and Bluetooth | Optional. Qualcomm Atheros Dual-band (2.4/5GHz) 802.11 a/b/g/n/ac 2Tx/2Rx WiFi & Bluetooth v4.1 |
| Certifications | IEC 60601-1 Edition 3.1 compliance, CE & FCC Class B Edition 4.0 certified |
| USB 2.0 type A |
2 x USB 2.0 ports (front)
2 x USB 2.0 ports (rear) |
| Serial Port | 2 x RS-232/422/485 (1.5KV isolated) |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
