POC-W152
POC-W152
Advantech

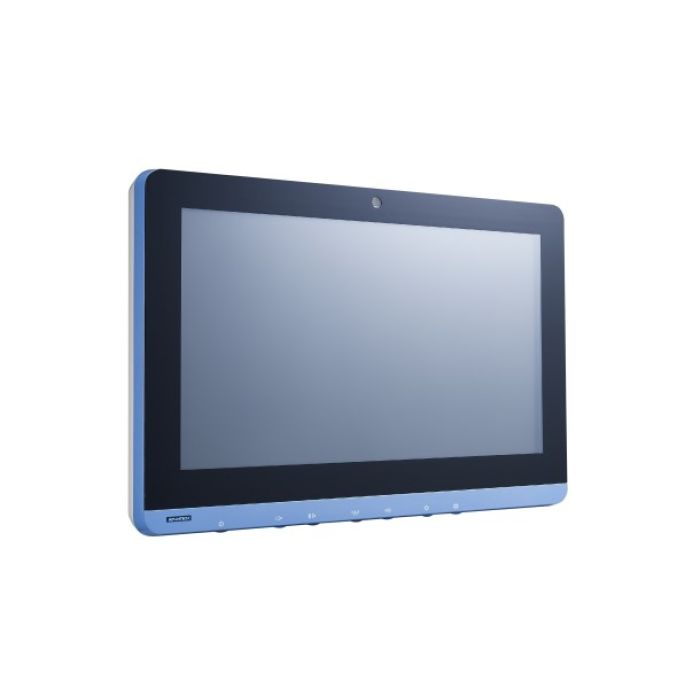

15.6" widescreen medical grade computer
POC-W152 runs on an Intel® Core™ i3, i5 or i7 processor and the chipset capable of displaying crystal clear images on its 15.6” wide-screen display. The system is highly integrated and provides a rich selection of high speed I/O connectors, user-friendly function keys, and customizable features. POC-W152, housed in a slim 5.98 cm casing, weighs only 4.65 kg.
The system optionally accommodates a multi-touch resistive touchscreen for ease of use, with many other optional features also available including Bluetooth, RFID, WLAN and more. In addition, POC-W152 terminal has a three-year warranty and have passed Reliability Demonstration Testing (RDT) to ensure continuous and flawless operation. This high performance fanless terminal is designed for image intense medical applications in operating arenas, at bedside, nursing stations, or other point-of-care locations within the hospital or clinic.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Operating System | Windows 7, Windows 8 Embedded Standard, Windows 8 Industry Pro, Windows 10 (Linux by project) |
| Power |
External power adapter
Input voltage: 100 - 240 VAC, 1.2 - 0.5 A, 47 - 63 Hz Output voltage: +18 VDC, 5.55 A max. (100 watts) |
| Touchscreen | P-cap Multi-touch or Res TS , True Flat Design |
| Camera | Optioanl auto-focus 5MP Camera |
| VGA Port | 1.0000 |
| Smart Card Reader | Optional, complies with ISO7816-1,2,3,T=1 and T=0 protocol |
| CPU |
Model A/B/Db>
Model C
|
| Primary Storage | 1 x 2.5" SATA |
| Display Max Resolution |
1366 x 768
Luminance: 300 cd/m2 LCD backlight 500:1 contrast ratio |
| USB 3.0 | 2 |
| IP Rating |
IP65 (front panel)
IP43 (system) |
| LAN | 1 x Gigabit Ethernet (RJ45 isolation) |
| Display Size | |
| Memory |
Model A/B/D
Model C
|
| Graphics Controller | Intel HD Graphics 5000 |
| HDMI | 1 |
| Expansion Slot |
Model A/B/D
Model C
|
| Speakers | 2 x 2W |
| RFID reader | Optional passive RFID / active RFID |
| WLAN and Bluetooth | Optional Wi-Fi/BT4.1 (802.11a/b/g/n/ac). For model C, please ask a member of our team. |
| Backup Battery | Optional 3S2P 5500mAH, supports at least 0.5 hr backup operation |
| Certifications | CE, FCC Class B, UL60601-1, EN60601-1 approved |
| USB 2.0 type A | 3 |
| Serial Port | 1 x RS-232/422/485 serial port |
| Key Features |
|
| Operating Temperature | 0° C - +40° C |
| Dimensions | 405.53 x 274 x 60.82 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
