POC-WP213L
POC-WP213L
Advantech

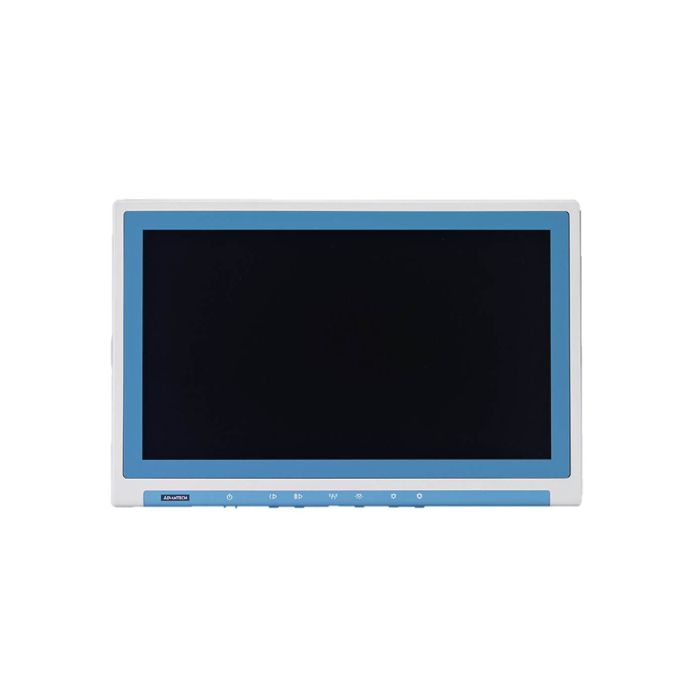

21" clinical grade widescreen point-of-care terminal
POC-W213L is a 21.5" Industrial-grade computer with the latest computing capabilities. The system is fanless for quiet operation and energy efficiency. It delivers high-performance with an Intel® Core™ i7/i5 7th generation or Celeron®3965U Dual-Core processor. Capable of displaying crystal clear images on its 21.5” wide-screen display.
POC-W213L, housed in a slim 6.5 cm casing, weighs only 6.9 kg. The point-of-care terminal has rich connectivity profile which supports two USB 3.0& two USB 2.0, and one DP and HDMI. It's also equipped with M.2 slot and one Mini PCIe slots for extension used. This unit is suited to ideal for light applications: nursing care, integrated with lightweight measuring instruments or appliances.
Key Features
- Support Intel® firmware trusted platform module (TPM) with Intel® Platform Trust Technology (Intel® PTT)
- Optional Bluetooth, RFID, inner WLAN module
- IPX1 water resistant enclosure with additional IP65 dust-tight front panel
- Isolated design provides unique electric leakage protection for LAN ports
- Capable of displaying crystal clear images on its 23.8" wide-screen display
- Ultra-thin display, only 65 mm slim at its widest point
- Runs on Intel® 7th generation, kabylake processor with a fanless, high performance profile
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 550 x 360 x 65 mm |
| Operating System | Windows 10 IoT, Linux |
| Power |
DC adapter C14 DC plug 180°
Input voltage: 90 - 240 VAC, 1.3 - 0.8A @ 47 - 63Hz Output voltage: 12 VDC, 7A |
| Touchscreen | Projected capacitive with continuous resolution and durability >100 million touches. |
| CPU |
Intel Kaby Lake Core i5-7300U
Optional Intel Celeron 3965U |
| Primary Storage | Default 1x slot SATA SSD/HDD |
| Display Max Resolution |
1920 x 1080
Luminance: 250 cd/m2 3000 (typ.)contrast ratio |
| USB 3.0 | 2 |
| IP Rating |
IP65 (front panel)
IPX1 (system) |
| COM Port | Optional COM RS232 serial port x 2 |
| LAN | 2 x Gigabit Ethernet (1.5KV isolated) interfaces (RJ45) |
| Mounting |
VESA 100 x 100mm
VESA 75 x 75mm |
| Display Size | |
| Memory |
1 x DDR4 SODIMM slot (Default 4GB; Up to 16GB)
Optional 2x slot Up to 32GB |
| Graphics Controller | Intel® HD Graphics 610/620 |
| Secondary storage (optional) | 2 x slot |
| HDMI | 1 x up to 4096 x 2304 @ 24Hz |
| Display port | 1 x up to 4096 x 2304 @ 60Hz |
| Expansion Slot |
Full Mini-PCIe x 1
M.2 Slot x 1 |
| Speakers | 2 x 1.5W |
| WLAN and Bluetooth | Optional dual-band (2.4/5GHz) 802.11 a/b/g/n/ac 2Tx/2RxWifi &Bluetooth v4.1 (Optional v4.2) |
| Certifications | CCC, CE, UL, FCC |
| USB 2.0 type A | 2 |
| Operating Temperature | 0° C - +40° C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
