MILTECH 9126
MILTECH 9126
Enercon Technologies Europe

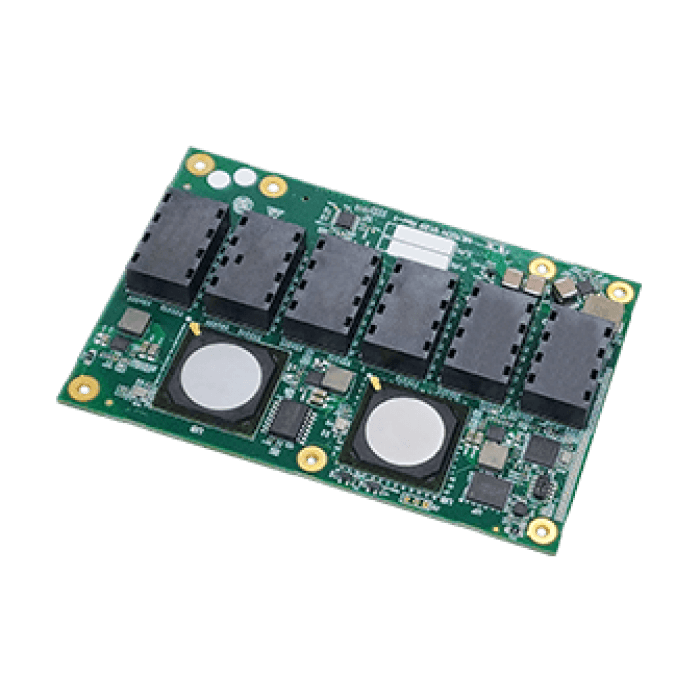

Managed 26 port board level Gigabit Ethernet switch
The MILTECH 9126 supports 24 x 1G copper ports and 2 x SGMII interfaces for direct connection to 2 x 1G Fiber ports. Designed for complex traffic applications featuring IEEE-1588 capabilities and Synchronous Ethernet (SyncE).
With dimensions of only 130x87mm including integrated PHY and magnetics/transformers, the MILTECH 9126 reduces integration risks. It also eliminates the need for adaptations between the switch board to an external PHY and software integration. MILTECH 9126 features both L2/L3 network switching and static routing capabilities, including virtual LANS (VLANS), traffic prioritisation/QoS, IPv4/IPv6. It also supports the latest networking protocols for redundancy, security and multicast.
These advantages, when incorporated in a suitable enclosure to withstand MIL-STD-810F and MIL-STD-461E compliance, make the MILTECH9126 the ultimate plug-and-play solution for advanced military applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| IP Certified | IP67 |
| Designed to Meet |
|
| Type | Managed Embedded Ethernet Switch |
| Total Number of Ports | 26-30 |
| Port Configuration |
|
| Operating Temperature | -45°C to 85°C |
| Dimensions | 130mm x 87mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
