MM1-0626HCSP2
MM1-0626HCSP2
Marki Microwave

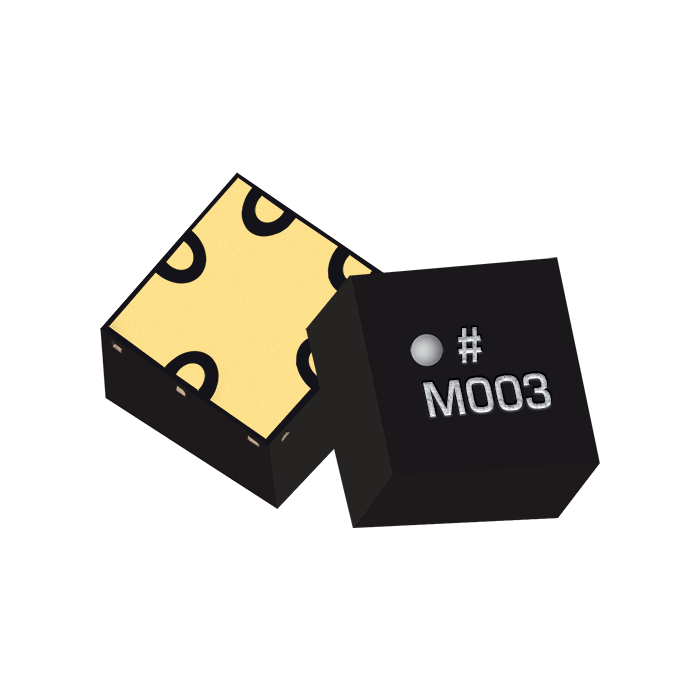

GaAs MMIC Chip Scale Package Double Balanced Mixer
The MM1-0626HCSP2 is a highly linear passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor.
The MM1-0626HCSP2 is available in a lead-free, RoHS compliant 2.5x2.5 mm chip scale surface mount package (CSP2) and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0626HCSP2 is a smaller alternative to the standard MM1-0626HSM.
MM1-0626HCSP2 Applications:
- Test and Measurement Equipment
- SATCOM
- Electronic Warfare
- 5G
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Family | Mixers |
| Size | 2.50 x 2.50 mm |
| Key Features |
|
| LO Drive Min (dBm) | 11 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | 22_5 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
