MM1-1857H
MM1-1857H
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-1857H is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturised form factor. Accurate, nonlinear simulation models are available for Microwave Office through the Marki Microwave PDK.

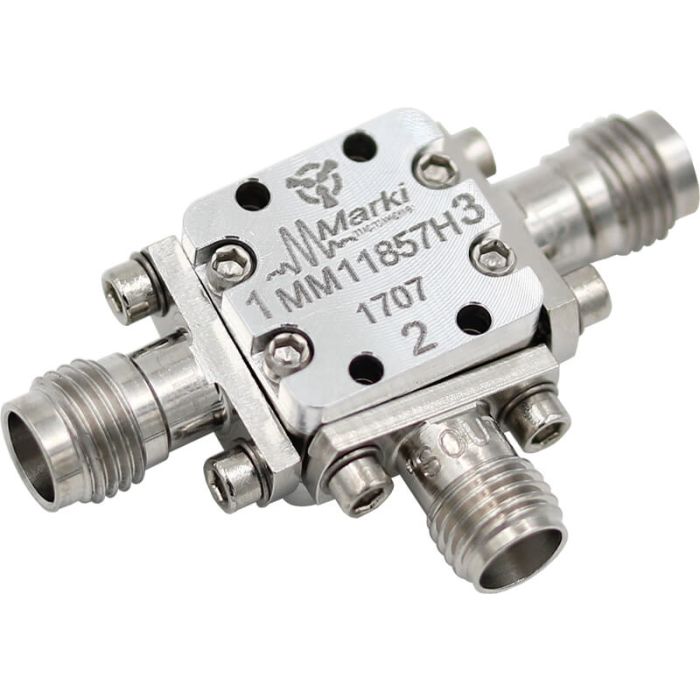

The MM1-1857H is available as a wire bondable chip or in a connectorised package. The MM1-1857H is a superior alternative to Marki Microwave carrier and packaged M9 mixers.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 21 |
| LO Drive Min (dBm) | +13 to +21 |
| Conversion Loss (dB) | 7.5 |
| Isolations L-R (dB) | 45 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +20 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
