MMIQ-0416L
MMIQ-0416L
Marki Microwave
Passive GaAs MMIC IQ Mixer
The MMIQ-0416L is a low LO drive, passive GaAs MMIC IQ mixer. This is an ultra-broadband mixer spanning 4 to 16 GHz on the RF and LO ports with an IF from DC to 6 GHz. Up to 28 dB of image rejection is available due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid. Banded performance is possible at LO drive as low as +4 dBm.

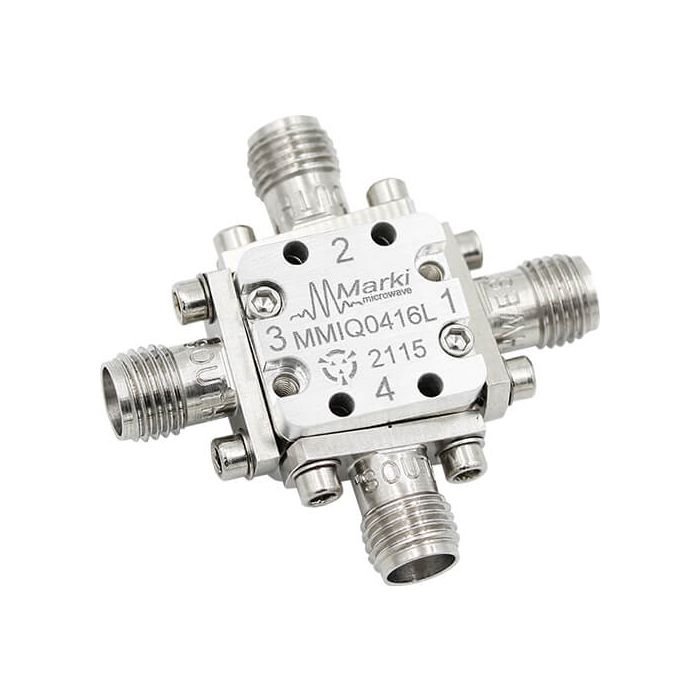

Both wire bondable die and Connectorised modules are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Applications |
|
| IF (GHz) | DC to 6 |
| LO Drive (dBm) | +7 to +16 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 58 |
| Isolations L-I (dB) | 40 |
| RF/LO (GHz) Low | 4 |
| RF/LO (GHz) High | 16 |
| Image Rejection (dB) | 28 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
