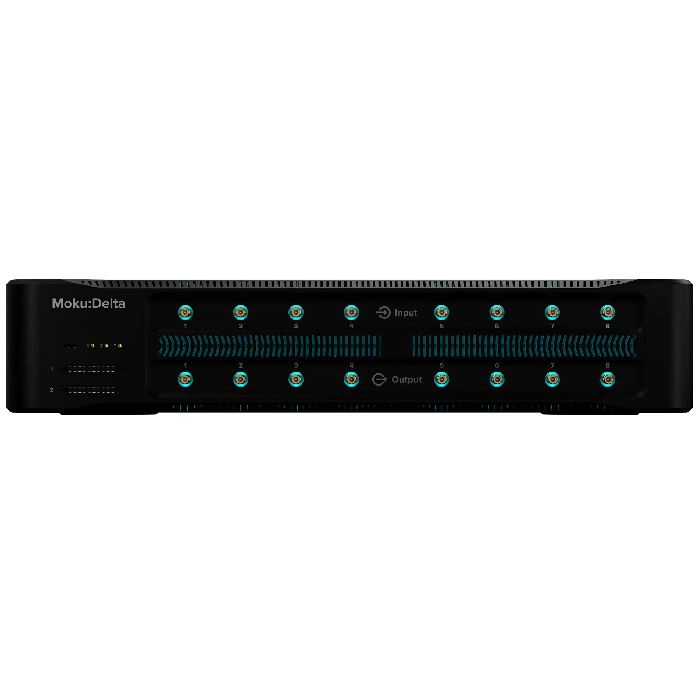

Moku:Delta 8-channel, 2 GHz FPGA-based test platform - Available as a Base Suite or Full Suite Bundle
Moku:Delta is an FPGA-based test and measurement platform for engineers who need high bandwidth, low noise and a lot of channels in one instrument.
The Moku:Delta comprises eight analogue inputs and eight analogue outputs from DC to 2 GHz, 32 digital I/O channels and a ±1 ppb clock.
The instruments run on a reconfigurable Xilinx RFSoC FPGA, so one unit can work as an oscilloscope, spectrum analyser, waveform generator and more. Multi-instrument Mode runs up to eight instruments at once, with signals passed between them inside the FPGA, so one device can replace several benchtop instruments.
Blended 14-bit and 20-bit ADCs hold input noise to 10 nV/√Hz at 100 Hz and below 6 nV/√Hz above 100 MHz. A 1 TB internal SSD, QSFP and dual SFP ports handle high-speed data. MokuOS runs on Windows, macOS, iPadOS or visionOS, with API support for Python, MATLAB, LabVIEW and more, and Moku Compile for your own FPGA code. Every unit includes a 12-month GenInst Studio Base subscription for building instruments from plain-language prompts.
Moku:Delta Options:
Moku:Delta is available in two bundles. The hardware is the same in both; the bundle sets which instruments come unlocked.
- Base Suite Bundle (BSB): six instruments – Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger, Logic Analyser / Pattern Generator and Spectrum Analyser. Other instruments can be added later as upgrades
- Full Suite Bundle (FSB): all 15 instruments, including the Lock-in Amplifier, Phasemeter, Frequency Response Analyser and Gigabit Streamer, plus the Neural Network and a three-year warranty
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 44 cm × 37.1 cm × 8.7 cm (17.32 × 14.61 × 3.43 in) |
| Weight | 11.2 kg (24.69 lb) |
| Operating Temperature | 5 - 40 °C |
| Channels | 8 inputs, 8 outputs |
| Whats Included | BSB: Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger, Logic Analyser / Pattern Generator, Spectrum Analyser. FSB: all BSB instruments plus Digital Filter Box, FIR Filter Builder, Frequency Response Analyser, Gigabit Streamer, Laser Lock Box, Lock-in Amplifier, Phasemeter, PID Controller, Time & Frequency Analyser and Neural Network. Both bundles: Multi-instrument Mode, Moku Compile, GenInst Studio Base (12 months) |
| Resolution | Inputs: 14-bit (high bandwidth) / 20-bit (low bandwidth). Outputs: 14-bit |
| Sample Rate | Inputs: 5 GSa/s on all 8 channels at once. Outputs: 5 GSa/s per channel (10 GSa/s with interpolation) |
| Frequency Outputs | DC - 2 GHz (1 Vpp range), DC - 100 MHz (10 Vpp range) |
| Frequency Inputs | DC - 2 GHz (50 Ω input) |
| Connectivity | Gigabit Ethernet, QSFP, 2 × SFP, USB-C (front), USB-A (rear) |
| Output Voltage | 1 Vpp and 10 Vpp ranges |
| Input Voltage | 40 Vpp into 1 MΩ, 10 Vpp into 50 Ω |
| Impedance | Inputs: 50 Ω / 1 MΩ. Outputs: 50 Ω |
| Model No. (Order Code) | Base Suite Bundle (BSB), Full Suite Bundle (FSB) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
