Moku:Go
Moku-Go
Liquid Instruments

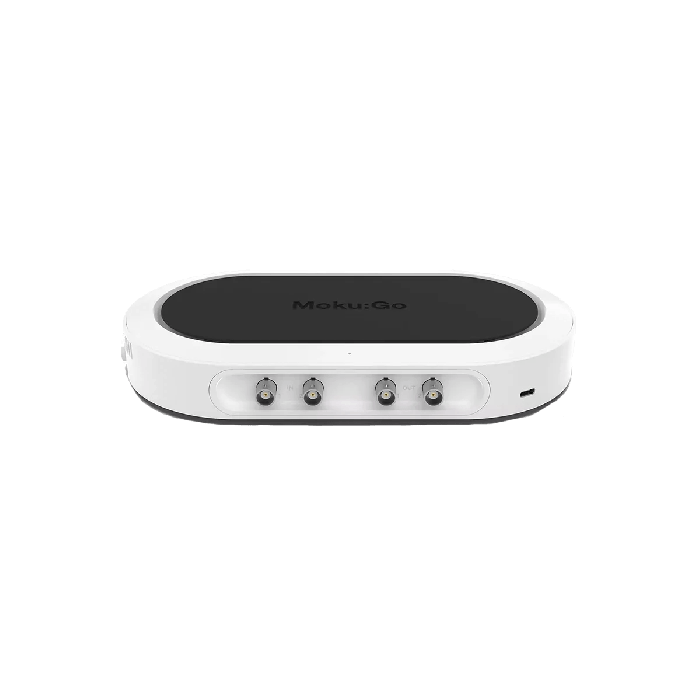

Moku:Go portable 30 MHz FPGA-based test device - Available as a Base Suite or Full Suite Bundle
Moku:Go is a compact, FPGA-based test and measurement device for engineering teams, teaching labs and prototyping away from the bench.
The Moku:Go comprises two analogue inputs and two analogue outputs, 16 digital I/O channels and built-in programmable power supplies. It weighs about 750 g and connects over USB-C or Wi-Fi.
One device covers up to 14 instruments, including an oscilloscope, spectrum analyser, waveform generator, logic analyser and lock-in amplifier. Multi-instrument Mode runs two instruments at once, so you can build a small test setup without a bench full of equipment.
Inputs sample at 125 MSa/s with 12-bit resolution and 30 MHz bandwidth, with an input range of ± 25 V. MokuOS runs on Windows, macOS, iPadOS or visionOS, with API support for Python, MATLAB, LabVIEW and more, and Moku Compile for your own FPGA code. Every unit includes a 12-month GenInst Studio Base subscription for building instruments from plain-language prompts.
Moku:Go Options:
Moku:Go is available in two bundles. The bundle sets which instruments come unlocked.
- Base Suite Bundle (BSB): six instruments – Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger, Logic Analyser and Spectrum Analyser. Other instruments can be added later as upgrades
- Full Suite Bundle (FSB): all 14 instruments, including the Lock-in Amplifier, Phasemeter, Frequency Response Analyser and PID Controller
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 24 cm × 9.47 cm × 3.73 cm (9.45 × 3.73 × 1.47 in) |
| Weight | ~750 g (1.7 lb) |
| Operating Temperature | 0 - 45 °C |
| Channels | 2 inputs, 2 outputs |
| Whats Included | BSB: Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger, Logic Analyser, Spectrum Analyser. FSB: all BSB instruments plus Digital Filter Box, FIR Filter Builder, Frequency Response Analyser, Laser Lock Box, Lock-in Amplifier, Phasemeter, PID Controller and Time & Frequency Analyser. Both bundles: Multi-instrument Mode, Moku Compile, GenInst Studio Base (12 months) |
| Resolution | 12-bit |
| Sample Rate | 125 MSa/s |
| Frequency Outputs | DC - 20 MHz (-3 dB) |
| Frequency Inputs | DC - 30 MHz (-3 dB) |
| Connectivity | USB-C, Wi-Fi (Ethernet on M2) |
| Output Voltage | ± 5 V |
| Input Voltage | ± 25 V |
| Impedance | 1 MΩ |
| Power Supply | M0: none. M1: 2 channels (+5 to –5 V @ 150 mA, 0 to +16 V @ 150 mA). M2: 4 channels (+5 to –5 V @ 150 mA, 0 to +16 V @ 150 mA, dual 0.6 to 5 V @ 1 A) |
| Model No. (Order Code) | Base Suite Bundle (BSB), Full Suite Bundle (FSB). Models: M0, M1, M2 |
