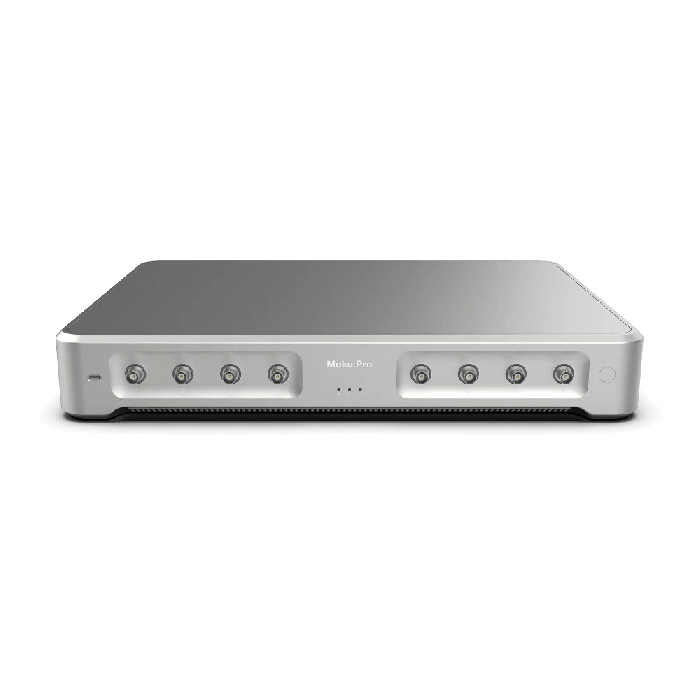

Moku:Pro 4-channel, 600 MHz FPGA-based test platform - Available as a Base Suite or Full Suite Bundle
Moku:Pro is an FPGA-based test and measurement platform for research and development teams who need up to 600 MHz bandwidth and several instruments running at once.
The Moku:Pro comprises four analogue inputs up to 600 MHz and four analogue outputs up to 500 MHz, with a 0.3 ppm onboard clock and a 10 MHz reference input and output.
The instruments run on a Xilinx UltraScale+ FPGA, so one unit can work as an oscilloscope, spectrum analyser, lock-in amplifier, PID controller and more. Multi-instrument Mode runs up to four instruments at once, with signals passed between them inside the FPGA, so one device can replace several benchtop instruments.
Blended 10-bit and 18-bit ADCs hold input noise to 30 nV/√Hz at 100 Hz, and inputs sample at up to 5 GSa/s on a single channel. A 240 GB internal SSD, Gigabit Ethernet, Wi-Fi and USB-C handle data. MokuOS runs on Windows, macOS, iPadOS or visionOS, with API support for Python, MATLAB, LabVIEW and more, and Moku Compile for your own FPGA code. Every unit includes a 12-month GenInst Studio Base subscription for building instruments from plain-language prompts.
Moku:Pro Options:
Moku:Pro is available in two bundles. The hardware is the same in both; the bundle sets which instruments come unlocked.
- Base Suite Bundle (BSB): five instruments – Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger and Spectrum Analyser. Other instruments can be added later as upgrades
- Full Suite Bundle (FSB): all 14 instruments, including the Lock-in Amplifier, Phasemeter, Laser Lock Box and PID Controller, plus the Neural Network and a three-year warranty
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 44 cm × 33 cm × 6.5 cm (17.32 × 13.0 × 2.56 in) |
| Weight | 6.7 kg (14.77 lb) |
| Operating Temperature | 0 - 45 °C |
| Channels | 4 inputs, 4 outputs |
| Whats Included | BSB: Oscilloscope, Waveform Generator, Arbitrary Waveform Generator, Data Logger, Spectrum Analyser. FSB: all BSB instruments plus Digital Filter Box, FIR Filter Builder, Frequency Response Analyser, Laser Lock Box, Lock-in Amplifier, Logic Analyser / Pattern Generator, Phasemeter, PID Controller, Time & Frequency Analyser and Neural Network. Both bundles: Multi-instrument Mode, Moku Compile, GenInst Studio Base (12 months) |
| Resolution | Inputs: 10-bit (high bandwidth) / 18-bit (low bandwidth). Outputs: 16-bit |
| Sample Rate | Inputs: 5 GSa/s (1 channel), 1.25 GSa/s (4 channels). Outputs: 1.25 GSa/s per channel |
| Frequency Outputs | DC - 500 MHz (2 Vpp), DC - 100 MHz (10 Vpp) |
| Frequency Inputs | DC - 600 MHz (300 / 600 MHz selectable) |
| Connectivity | Gigabit Ethernet, Wi-Fi, USB-C |
| Output Voltage | 2 Vpp (± 1 V) up to 500 MHz, 10 Vpp (± 5 V) up to 100 MHz, into 50 Ω |
| Input Voltage | 400 mVpp, 4 Vpp or 40 Vpp ranges |
| Impedance | Inputs: 50 Ω / 1 MΩ. Outputs: 50 Ω |
| Model No. (Order Code) | Base Suite Bundle (BSB), Full Suite Bundle (FSB) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
