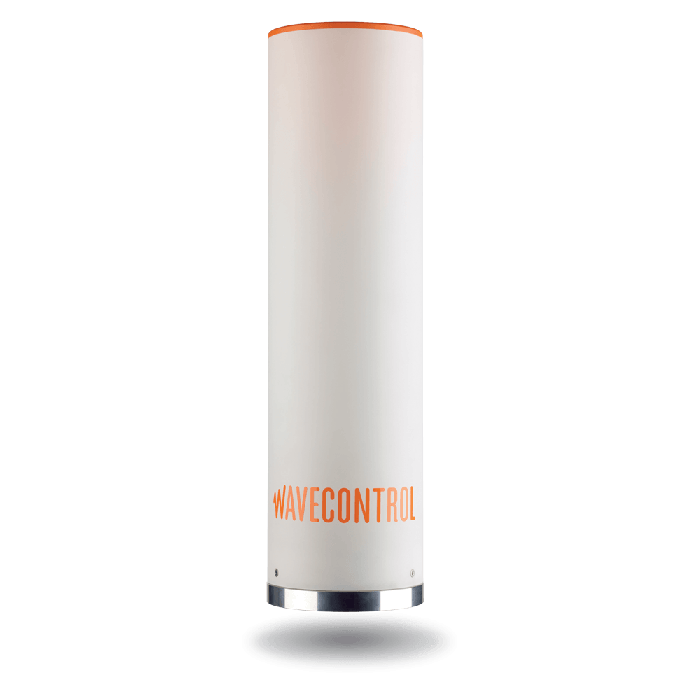

Wavecontrol RF MonitEM-Lab for Continuous Indoor EMF Monitoring

MonitEM-Lab Indoor RF Monitoring

The Wavecontrol MonitEM-Lab provides 24/7 monitoring of electromagnetic fields (EMF) within laboratories, working centres and industrial, military, airports and other facilities with exposure to radiation. The MonitEM-Lab’s built-in audible and visual alarms quickly alert users to set changes in EMF measurements. Alarms can be programmed by users in Wavecontrol’s Control Centre web interface.

The MonitEM-Lab has been optimized for high-frequency applications, for example the future 5G bands. The indoor RF monitoring device by Wavecotrol allows 24/7 monitoring of high-frequency EMF up to 3, 8, 18 or 40 GHz depending on the field probe used.

The MonitEM-Lab can act as a stand-alone device or wall-mounted within your facility. With the MonitEM-Lab, both visible and audible alarms are customisable and are in compliance with ITU-T K.83 recommendation. Detected levels of EMF can be followed seamlessly with a PC via ethernet, and/or via intranet/internet through an optional control centre.

MonitEM-Lab Key Features:

  • Alarms - realtime, audible and visual alarms.
  • Easy to install - AC supply and ethernet communication.
  • 24/7 Monitoring - permanent around-the-clock monitoring.
  • Control centre - optional software for system management.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Video URL https://youtu.be/6kyE6tg9tl0
Dimensions 445 x Ø120 mm (17.5 x Ø4.72 in.)
Alarm Audible and visual alarm (configurable). The sound can be stopped by an external switch.
Compatible Field Probes WPF3, WPF6, WPF8, WPF18, WPF40, WPF60, WPH1000
Applications Telecommunications Laboratories , Defense, Industry, Medical
Features
  • 24/7 Monitoring - continuously monitors electromagnetic fields in indoor facilities
  • Broadband measurements - for an easy assessment of EMF human exposure.
  • Easy to install - stand-alone or wall-mounted.
  • Alarms - Realtime, audible and visual alarms.
  • ITU-T K.83 Recommendation - compliant with ITU monitoring guidance.
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. WaveMon LF-400
  2. SMP3

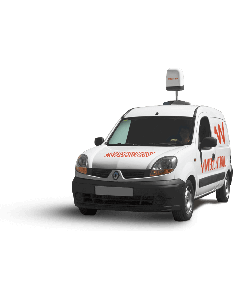

  3. cMonitEM
