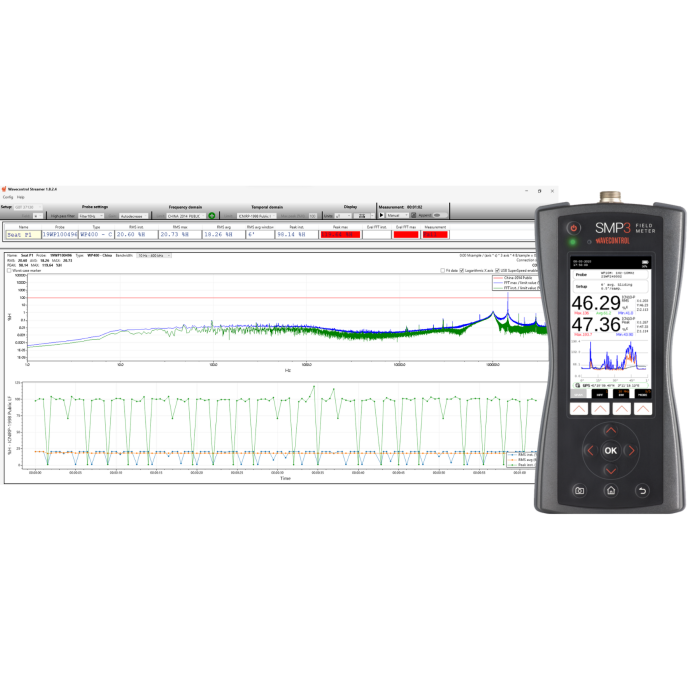

SMP3-Streamer

Electromagnetic Field Measuring System for Automotive Standards

The measurement of ElectroMagnetic Fields for human exposure is becoming increasingly important, especially with the introduction of electric vehicles and the increase of electronic devices inside. These measurements are essential to assure safety against human exposure to ElectroMagnetic Fields (EMF).

SMP3 Streamer is a real-time electromagnetic field measuring system according to newer automotive test requirements about human exposure to electromagnetic fields, like GB/T 37130, MBN 10284-2, TSC 7048G and many others.

Simultaneous measurements for time and frequency domain, independently selectable limits, frequency resolution steps and resolution bandwidth (RBW) to get real-time measurements. Its flexible configuration allows the use of a single unit or combining several units to build a multi-probe system for faster measurements.

Simplified Setup

The SMP3 Streamer system does not require any additional hardware or test equipment, offering a simplified test setup for both full vehicle and components testing. Maximum flexibility and usability for the test operators.

Magnetic field Measurement

The SMP3 Streamer is used for measuring Magnetic field from 1 Hz to 400 kHz in the time and frequency domain with real-time FFT results. The data can be analyzed and saved to a PC without the need of an external acquisition card.

Real-Time Simultaneous Measurements

Time and frequency domain measurements can be done simultaneously with independently selectable limits for both measurements. Results are shown in real time during measurements.

Multiple Probes system measurement

Multiple device measurements can be done simultaneously. Up to 7 devices can be used to facilitate assessment of multiple points in a vehicle test at the same time, reducing test time dramatically.

Multi-Standard System

The SMP3 streamer system is a multi­ standard measuring device. Operator can choose from pre-defined setups according to specific standards, or select any standard or limit from the available list. Customized frequency domain limits are also possible through a limit editor.

Compliance with automotive standards

The software is designed to comply with the latest automotive standards. It allows for measuring all aspects of the automotive vehicle including the car seats, electrical and electronic components in all operational modes. The software indicates FAIL/PASS during the measurement (real-time). The current setup perfectly complies with latest automotive standards like IEC 62764-1, GB/T 37130, MBN 10284-2, TSC 7048G, FMC 1278, JASO TP-13002, GS 95002, TL 81000, and many others.
