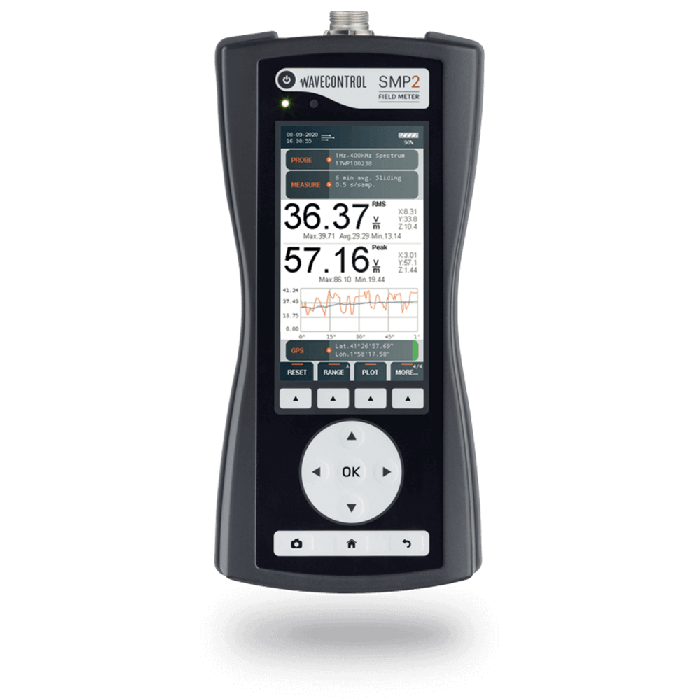

SMP2

SMP2

Wavecontrol

Field Strength Meter for EMF Exposure with 3-in-1 functionalities: broadband measurements (DC to 60 GHz), frequency spectrum analysis (DC to 400 kHz) and static field measurements.

The Wavecontrol SMP2 is now obsolete. Please see the new Wavecontrol SMP3.

3-in-1 Field Strength Meter for EMF exposure: Spectrum Analysis, Broadband and Static Field Measurements

The SMP2 from Wavecontrol offers genuine 3-in-1 functionalities, with broadband measurements (DC to 60 GHz), frequency spectrum analysis (DC to 400 kHz) and static field measurements.

The SMP2 field meter provides the most advanced features and technology on the market, designed for users who need high-quality measurements, ease of use and good reporting tools. Along with advanced features, the SMP2 comes equipped with Wavecontrol's practical accessories, such as SMP2 Reader PC Software, SMP2 Carrying Case, USB cable and AC/DC charger.

Wavecontrol SMP2 Field Meter Features

3 Instruments in 1

  • Broadband measurements - 60 GHz (with RMS and isotropic field probes)
  • Spectrum Analysis DC - 400 kHz Real-time FFT
  • Static Field Measurements

Weighted Peak Method (WPM)

Real-time comparison in % with the selected limits

One Single Meter for All Probes

  • Isotropic and high-accuracy probes
  • Electric and Magnetic field
  • Probe auto-detect capability

Assessments According to European Directive 3013/35/EU

  • EU Directive 2013/35, ICNIRP, IEC, EN, IEEE, SC6, etc.

High-Performance GPS

  • Integrated into the instrument

USB and Fibre Optic Communication

  • PC software included
  • Data download, automatic reporting, and remote control
  • Compatible with all Wavecontrol Probes

SMP2 Field Strength Meter Applications

Designed and manufactured with all workers' who become exposed to electromagnetic fields in a wide range of industrial areas, machinery and manufacturing processes. The Wavecontrol SMP2 is suitable for Automotive, Industry, Telecommunications, Energy, Railway, Medical, laboratory, Aeronautical, Workers' Safety and defence environments.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Video URL https://youtu.be/w9_87pgyX_E
Dimensions 100 x 2100 x 215 x 40 mm (3.9 x 8.4 x 1.5 “)15 x 40 mm (3.9 x 8.4 x 1.5 “)
Broadband 0 Hz – 60 GHz (depending on field probe)
Spectrum Analysis up to 400 kHz
Weighted Peak Method 1 Hz – 400 kHz (Real time WPM for direct comparison with limits)
Display Type Color transmissive TFT (480 x 272 pixels)
Battery Internal rechargeable Li-ion
Field Probes Automatic detection and recognition
Readout Values Total field (instantaneous, max., min. and average), Field components (X, Y, Z)
E-Field Units V/m, kV/m, μW/cm2, mW/cm2, W/m2, %
H-Field Units nT, μT, mT, T, A/m, %, mG, G
Log Time Configurable (from 0.5 s to 6 min)
Average Modes Fixed o Sliding, according to international standards
Schedule Measurement customised (up to 24 hours)
Memory Capacity More than 1 million samples
Data Downloading Mini-USB and Fibre Optics
Firmware Updating Mini-USB
Alarm 2400 Hz audible signal (adjustable threshold)
GPS (Optional) Built-in u-blox 7 (56 independent tracking channels)
Autonomy > 24 hours
Compatible Field Probes WPT, WPF3, WPF6, WPF8, WPF18, WPF40, WPF60, WP400, WP400-3, WP400c, WP50
Temperature Range -10 ºC to +50 ºC
Included Accessories
  • SMP2 Reader PC software
  • SMP2 carrying case
  • USB to mini-USB cable
  • AC/DC charger
Optional Accessories
  • Non-reflective wooden tripod - Part #WSNA0001
  • Tripod extension - Part #WSNA0002
  • Probe support for tripod - Part #WSNA0013
  • Probe extension cable - Part #WSNA0011
  • GPS - Part #WSNO0001
  • Fibre optics interface - Part #WSNA0004
  • Vehicle DC charger - Part #WSNA0007
  • SMP2 protective pouch - Part #WSNA0005
  • SMP2 backpack - Part #WSNA0008
Applications Industry, telecommunications, powerline, railway, medical, labs, aeronautical, worker's safety and defense.
Features
  • Special auto-gain function for peak detection (indispensable for procedures such as welding).
  • Display of results in RMS and peak values.
  • Function for time domain measurement of a specific frequency.
  • Frequency SPAN selection.
  • High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.
  • Max-hold function.
  • Display of maximum, minimum and average values.
  • Sliding window function according to standards.
  • Spatial average function.
  • Adjustable measurement time from 1s to 100 hours.
  • Programmable measurement to start at a given time.
  • Graphic display of broadband measurement changes over time.
  • Adjustable graph display from 1 s to 12 minutes.
  • Programmable alarm function.
  • Large storage capacity.
  • Screen-shot function for reporting.
  • PC software for control and reporting.
  • Results can be uploaded automatically to a web-page control centre.
  • Available in several languages.
