Hioki MR8740-50 Memory HiCorder | APC Technology Group

MR8740-50

MR8740-50

Hioki

Memory HiCorder - Max. 108ch, 1GW Memory, Main Unit Only

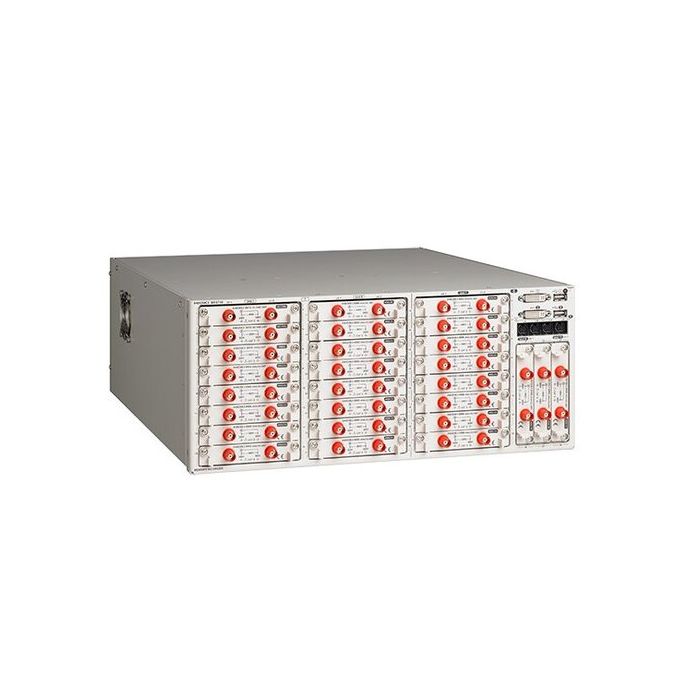

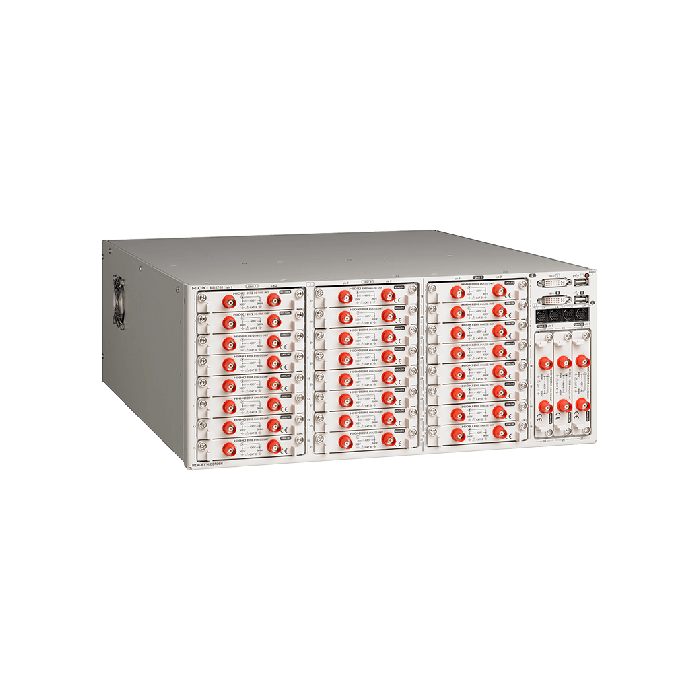

The MR8740-50 is rack-mountable data acquisition system that delivers high-speed, multi-channel measurements over maximum of 108 channels. Generate simulated signals and record at the same time using plug-and-play input units, making the waveform recorder ideal for evaluating multi-signal devices such as vehicle electronic control units (ECU).

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz (250 VA max.)
Dimensions and Weight 426 mm (16.77 in) W × 177 mm (6.97 in) H × 505 mm (19.88 in) D, 10.8 kg (381.0 oz) (main unit only)
Included Accessories Instruction manual × 1, Application disk (Wave viewer Wv, Communication commands table) × 1, Power cord × 2
Number of Input Units Max. 27 slots
Number of Channels

[Using the U8975] Max. 108 ch analog, or 96 ch analog + 48 ch logic (when used in combination with U8975 + 8973)
[Using the 8966] Max. 54 ch analog, or 48 ch analog + 48 ch logic (when used in combination with 8966 + 8973)

*Logic unit 8973 is limited to slots 25 to 27, up to 3 units.
*Analogue unit channels are isolated from each other and from chassis. Logic unit channels share a common GND with chassis.

Measurement Ranges

100 mV to 400 V f.s., 12 ranges, resolution: 1/2000 of range (when using 8966)
4 V to 200 V f.s., 6 ranges, resolution: 1/32000 of range (when using U8975)
100 mV to 1000 V f.s., 5 ranges, resolution: 1/1000 000 of range (when using MR8990)
1 V, 10 V, 100 V f.s., 3 ranges, resolution: 1/1000 000 of range (when using U8991)

Max Rated Voltage to Earth 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
Frequency Characteristics DC to 5 MHz (-3 dB, when using 8966)
Max Sampling Speed 20 MS/s, all ch simultaneous, external sampling: 10 MS/s
Measurement Functions Memory (high-speed recording)
Memory Capacity Total of 1 G Word installed, 16 MW/ch (when using 8966), 8 MW/ch (when using U8975 or MR8990), 4 MW/ch (when using U8991)
Internal Storage SSD 480 GB
Removable Storage USB memory stick x8
Monitor Output VGA, HDMI, Display Port, Recommended resolution 1920 × 1080 dot or more
External Interfaces

[LAN] 1000 BASE-T, 100 BASE-TX, 10 BASE-TX (2 port) (DHCP and DNS support, FTP server/client, HTTP server)
[USB] USB 3.0 Series A receptacle × 4, USB 2.0 ×4

Display None (1 digital DVI terminal per block, 800 × 600 dots)
Number of Slots

[Block I] 16 slots (Max. 16)

[Block II] 11 slots (Max. 11)

[Limitation on number of slots] when using the Current Unit 8971: Max. 4,

When using the Logic Unit 8973: [Block I] Max. 3; cannot use slots 9 to 16

[Block II] Max. 3; cannot use slots 9 to 11

Number of Logic Channels

[Block I] 8 ch logic (Logic probe terminal GND share a common GND with chassis.)

[Block II] 8 ch logic (Logic probe terminal GND share a common GND with chassis.)

[Limitation on using built-in logic input] applies to both Block I and Block II (with logic measurement ON)
- Measurement resolution on slots 1 and 2 is limited up to 12 bits
- Cannot use Frequency Unit 8970 on slots 1 and 2
- When using the DVM Unit MR8990 on slots 1 or 2: cannot use built-in logic input

Time Axis (Memory Function) 6 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000
More Information
Attribute Value
Data Sheet Click here to view
