MR8847A
MR8847A
Hioki

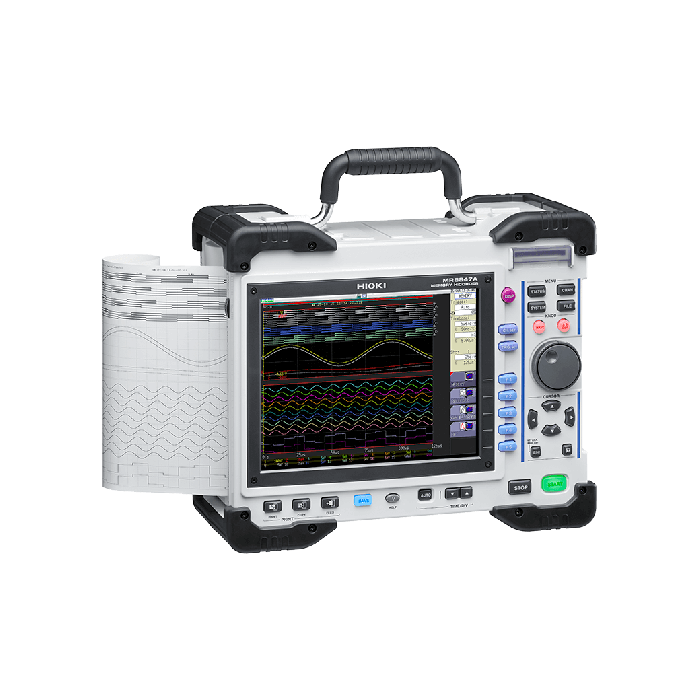

Memory HiCorder
High-speed 20 MS/s (*1), 32-channel, Fully Isolated Memory Recorder for On-site Jobs and R&D
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8847A delivers 20 MS/s sampling (*1), 32 isolated channels, and max. 1000 V direct input, all housed in a tough and field-ready body to properly respond to the most challenging work sites from transformer substations to railway maintenance yards to paper and steel mills.
Key Features
- Supports a wide variety of measurements with a total of 17 plug-in modules
- Generate and record with a single unit
- Direct 1000 V high voltage input testing
- High-speed sampling up to 20MS/s (*1) with fully isolated inputs
- 32 analogue channels + 16 logic ch to 20 analogue channels + 64 logic ch
- High-speed sampling with waveform judgement function
- Soil-resistant construction strong against adverse working environments
- Big buttons coated to withstand industrial oil and residue
- Drop-in paper loading and one-touch setup, along with high-speed 50mm/s printing
*1: When U8975, U8977, U8978 are installed, max. sampling speed is 10 MS/s.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply |
100 to 240 V AC, 50/60 Hz (130 VA max., when using printer: 220 VA max.), |
| Dimensions and Weight | 351 mm (13.82 in) W × 261 mm (10.28 in) H × 140 mm (5.51 in) D, 7.6 kg (268.1 oz) (main unit only) |
| Included Accessories | Instruction manual ×1, Measurement guide ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1, Input cord label ×1, USB cable ×1, Printer paper ×1, Roll paper attachment ×2, Ferrite clamp ×1 |
| Number of Channels | 32 ch analogue + 16 ch logic, or 20 ch analogue + 64 ch logic (when used with built-in logic input + plug-in Logic Unit 8973 × 3) |
| Measurement Ranges |
[Analog unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution: 1/100 of range (using 12-bit A/D) [High Voltage Unit U8974]: 200 mV/div to 50 V/div, 8 ranges, resolution : 1/1600 of range (using 16-bit A/D) |
| Frequency Characteristics | DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (using the U8794) |
| Measurement Functions | MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT |
| Memory Capacity |
MR8847-51: Total 64 M-words (Memory expansion: none) |
| Removable Storage | CF card slot (standard) ×1 (up to 2GB, FAT, or FAT-32 format), SSD (128 GB, optional), USB memory stick (USB 2.0) |
| External Interfaces | [LAN] 100BASE-TX (FTP server, HTTP server), [USB] USB2.0 compliant, series A receptacle ×1, series B receptacle ×1, (File transfer internal drive/CF card to PC, or remote control from PC) |
| Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) |
| Number of Slots | 8 slots (Max. 8), [Limitation on number of slots] when using the 3CH Current Unit U8977: Max. 3, when using the Current Unit 8971: Max. 4, when using the Logic Unit 8973: Max. 3 |
| Number of Logic Channels |
16 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1 or 2. [Limitation on using built-in logic input] (with logic measurement ON) |
| Time Axis (Memory Function) | 5 µs to 5 min/div (100 samples/div) 26 ranges, External sampling (100 samples/div, or free setting), Time axis zoom: x2 to x10 in 3 stages, compression: 1/2 to 1/200 000 in 16 stages |
| Other Functions | Waveform judgment (at Memory or FFT function) |
| Printing | 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s |
| Displayable Languages | English, Japanese, Korean, Chinese |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
