MR8848
MR8848
Hioki
Memory HiCorder - Up to 20 Analogue and 64 Logic Channels
High-performance Memory HiCorder
Infrastructure such as electric power facilities, data center UPSs, and railroads must operate with stability and zero downtime. High-precision waveform recording with the Memory HiCorder is essential to ensure safe and reliable operation of critical infrastructure.

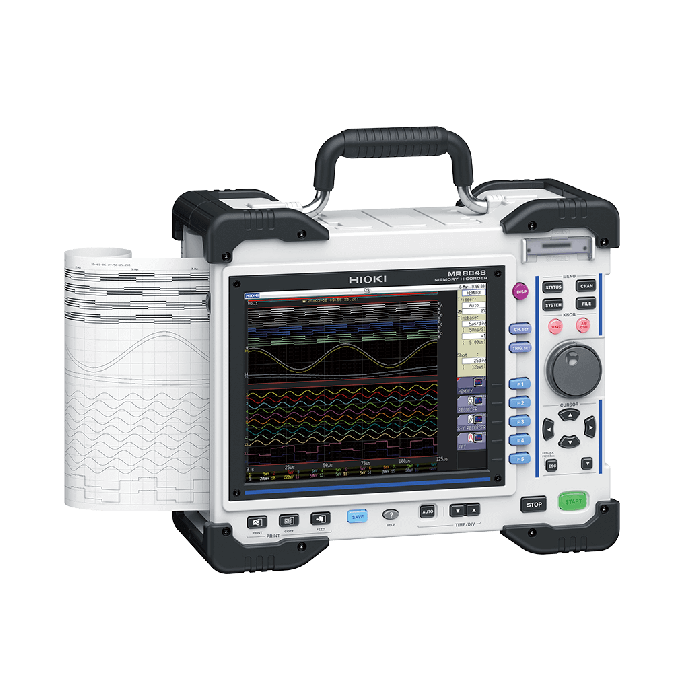

The Memory HiCorder MR8848 is a recording device used in fields such as power plants, railways, and industrial plants to measure transient phenomena.
The robust housing design has passed rigorous tests such as drop tests and vibration tests.
With high-speed sampling that captures the voltage and current waveforms of inverters, large-capacity memory that stores entire events, and multi-channel measurements that allow for the verification of correlations between multiple signals, it ensures that you won't miss critical waveforms.
Key Features
- Work anywhere with a durable, shock-resistant, portable design
- Safely measure with isolated channels
- Handle complex tasks using 32 analogue & 64 logic channels
- Record for extended periods with high-capacity memory
- Make pass/fail judgments with waveform & numerical analysis
- Check printed waveforms on-site using a built-in printer (optional)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 V to 240 V AC, 50/60 Hz, 10 V to 28 V DC (when using the DC Power Unit 9784) |
| Dimensions and Weight |
Approx. 351W × 261H × 140D mm (13.8W × 10.3H × 5.5D in.) (excluding protrusions) |
| Included Accessories | Startup Guide × 1, Operating Precautions × 1, input cord label × 1, power cord × 1, Recording Paper 9231 (when Printer Unit U8351 is installed) × 1, roll paper attachment (when Printer Unit U8351 is installed) × 1 |
| Number of Channels |
16 ch analogue + 16 ch logic |
| Max Sampling Speed |
20 MS/s for simultaneous use of all channels (when using the Analogue Unit 8966) |
| Measurement Functions | Memory function (waveform recording), Recorder function (peak/trough recording), X-Y Recorder function, FFT function |
| Memory Capacity |
Total 512 megawords (no memory expansion) |
| Removable Storage | SD card slot, built-in drive (1 TB, factory-installed option), USB flash drive |
| External Interfaces | LAN, USB, external control terminals |
| Number of Slots |
Up to 8 modules |
| Other Functions | Trigger, numerical calculation, waveform calculation, storage partitioning, cursor measurement, monitor, position display (VIEW), waveform evaluation, waveform generation |
| Printing |
When the factory-installed option Printer Unit U8351 is installed. |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
