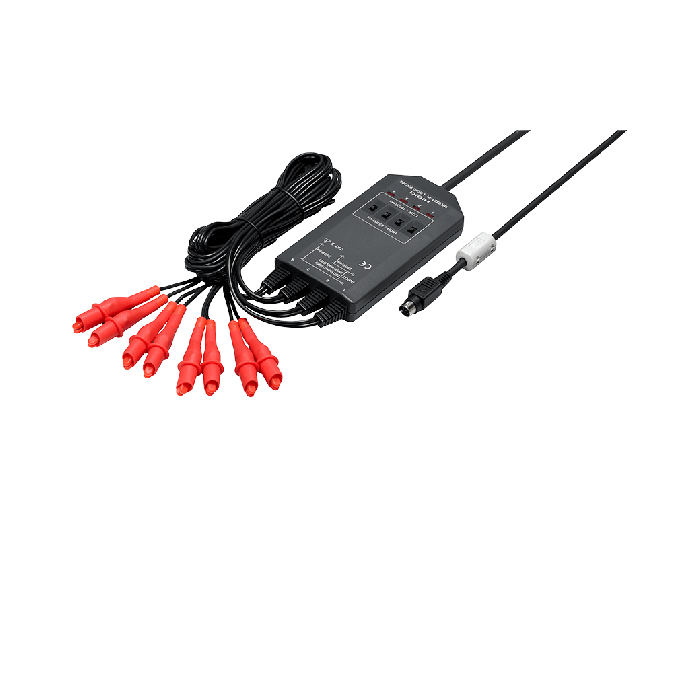

MR9321-01
MR9321-01
Hioki
Logic Probe
This product is available in 5-7 weeks
Detect AC/DC voltage with Memory HiCorders
Key Features
- 4 isolated channels
- ON/OFF detection of 100 V/200 V AC voltage, or 24 V DC
- Detect of voltage interruptions on power line
- High speed response of rise time of 1 ms, fall time of 3 ms
- Connect to a Memory HiCorder with miniature terminal
Contact us for lead time
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£428.05
| Attribute | Value |
|---|---|
| Function |
Detection of AC or DC relay drive signal for High/Low state recording |
| Dimensions and Weight | 62 mm (2.44 in)W × 128 mm (5.04 in)H × 20 mm (0.79 in)D, MR9321-01: 300 g (10.6 oz), MR9321: 320 g (11.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 1 m (3.28 ft) |
| Included Accessories | Carrying case ×1, Instruction Manual ×1 |
| Max Allowable Input | 250 Vrms (HIGH range), 150 Vrms (LOW range) (the maximum voltage that can be applied across input pins without damage) |
| Output Detection |
(H) (L) |
| Response Time | Rising edge 1 ms max., falling edge 3 ms max. (with HIGH range at 200 V DC, LOW range at 100 V DC) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
