MR9327
MR9327
Hioki

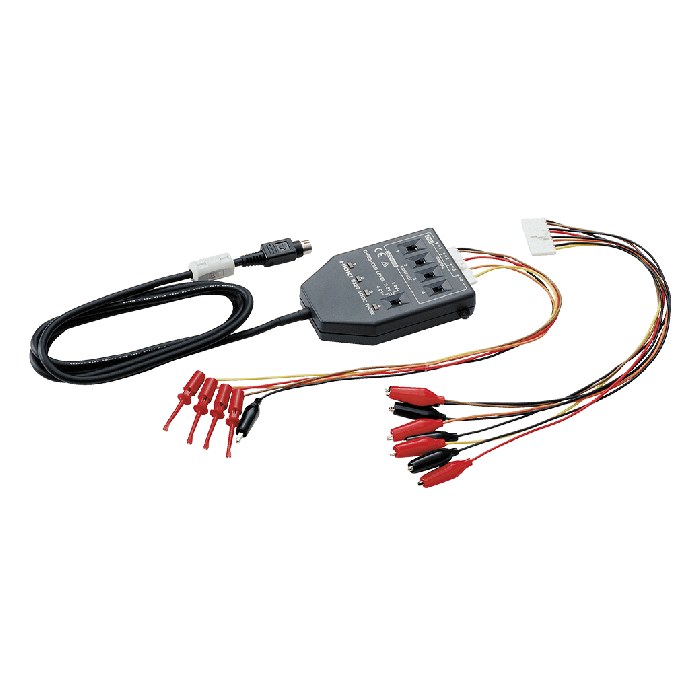

Logic Probe
Detect the Presence of Voltage or Relay Contact Signals with Memory HiCorders at High-speeds
Key Features
- Detect Hi/Lo voltage or relay contact signals
- 4 channels with common ground
- Switch between digital or contact input
- 3 thresholds for digital input (+1.4 V/+2.5 V/+4.0 V)
- Supports pulse widths as narrow as 100 ns using high speed response
- Miniature connector
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Function | Detection of voltage signal or relay contact signal for High/Low state recording |
| Dimensions and Weight | 62 mm (2.44 in)W × 94 mm (3.70 in)H × 20 mm (0.79 in)D, 150 g (5.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 300 mm (0.98 ft) |
| Included Accessories | IC clip leads ×1, Alligator clip leads ×1, Carrying case ×1, Instruction Manual ×1 |
| Max Allowable Input | 0 to +50V DC (the maximum voltage that can be applied across input pins without damage) |
| Digital Input Threshold | 1.4V/ 2.5V/ 4.0V |
| Contact Input Detection Resistance |
1.4 V: 1.5 kΩ or higher (open) and 500 Ω or lower (short) |
| Detectable Pulse Width | 100 ns or longer |
