MR8880

MR8880

Hioki

Memory HiCorder

Capture High-to-Low-Voltage Signals in a Single Device! Rugged, Professional and Ready for the Field

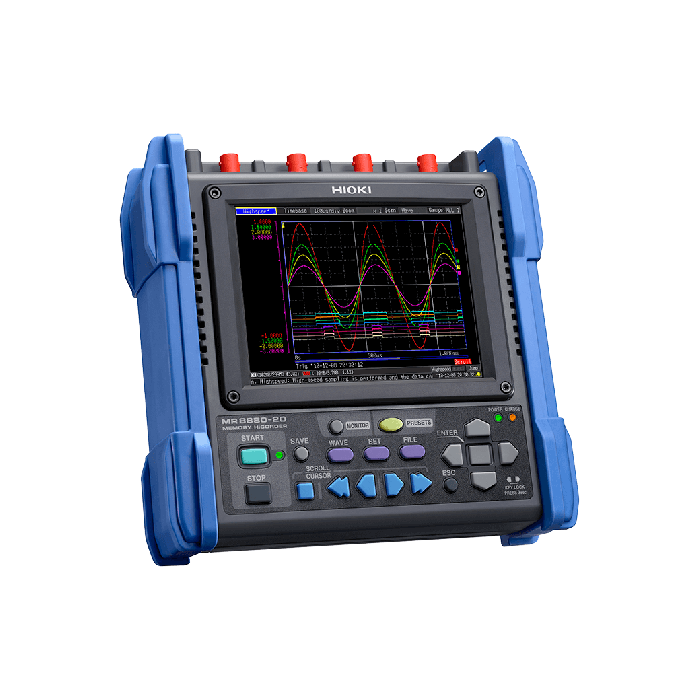

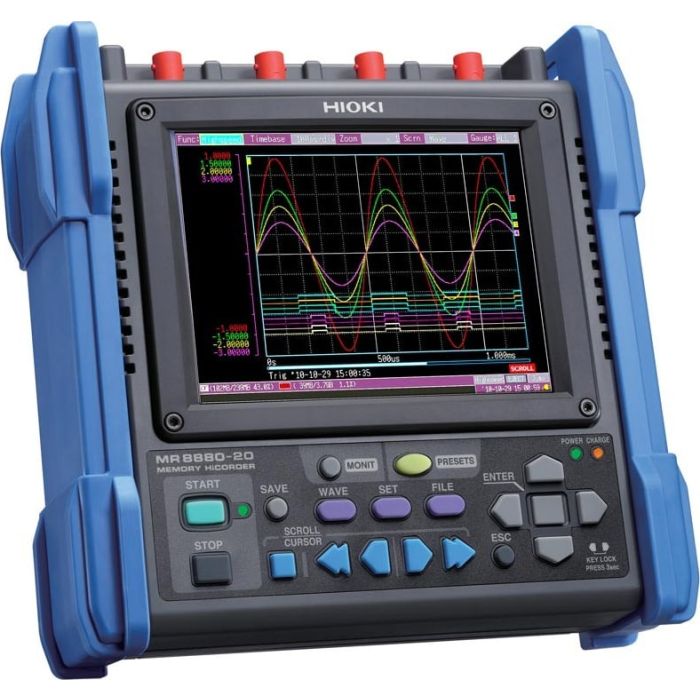

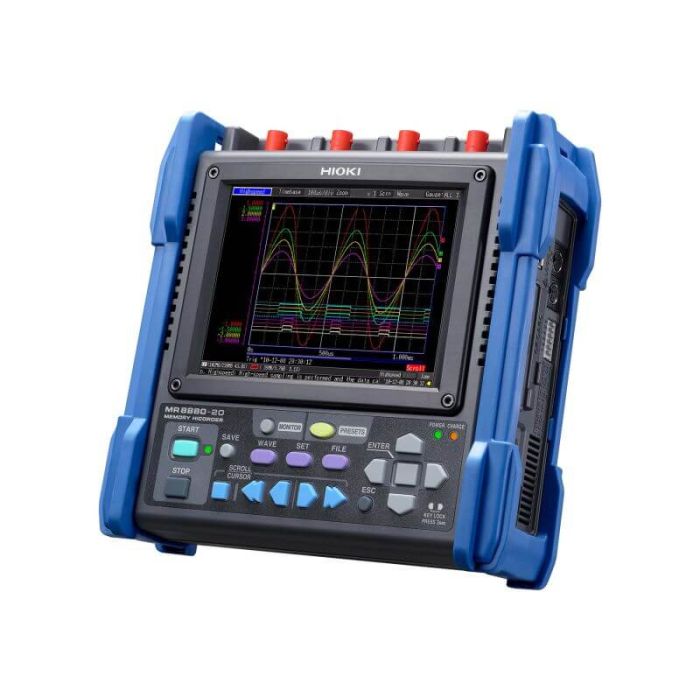

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analogue channels that can accept direct input of 600V, enabling measurements of 3-phase systems.

Key Features

  • CAT III 600V isolation performance; directly measure a 480V power line
  • 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
  • Tough against harsh environments; -10°C to 50°C operating temperature range
  • Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
  • Make settings easily with PRESETS function
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing)

Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON)
LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit)

DC power supply: 10 to 28 V DC

Dimensions and Weight 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) When printer is combined - with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed)
Included Accessories Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1
Number of Channels

4 analogue channels + 8 logic channels (standard)

Note: Isolated analogue channels, isolated input and frame, logic has common GND

Measurement Ranges

4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range

RMS value mode: 30 Hz to 10 kHz, Crest factor: 2

Frequency Characteristics DC to 100 kHz (±3dB)
Measurement Functions

High-speed function (high speed recording)

Real-time function (actual time recording)

Memory Capacity 14-bits × 1M-words/ch (1 word = 2 bytes)
Removable Storage CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Display 5.7-inch VGA-TFT color LCD (640 × 480 dots)
Printing

[Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec

Note: Printing is not supported when using alkaline batteries

Displayable Languages English, Japanese, Chinese
Max Rated Voltage Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV
Communication Interfaces USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Recording Intervals 100 µs to 1 minute, 19 selections (simultaneous sampling in all channels)
Time Axis (High-speed Function) 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
