MR8880-20
MR8880-20
Hioki

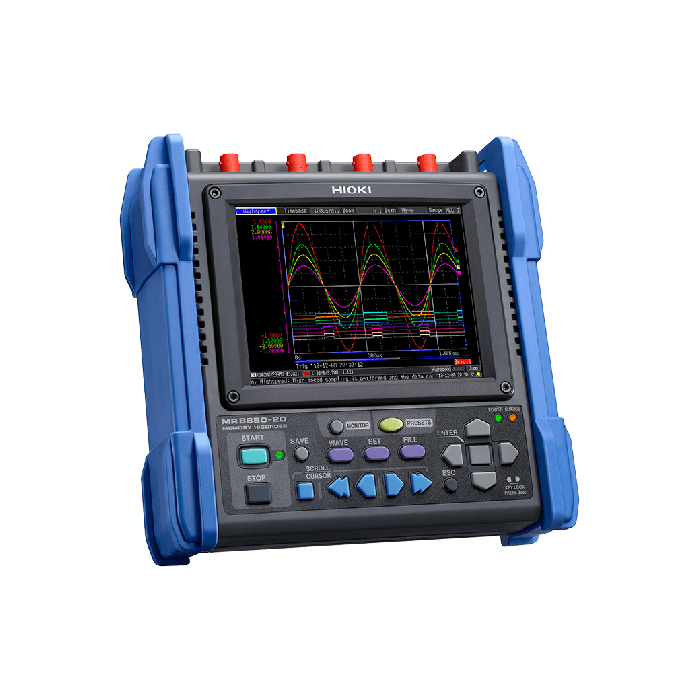

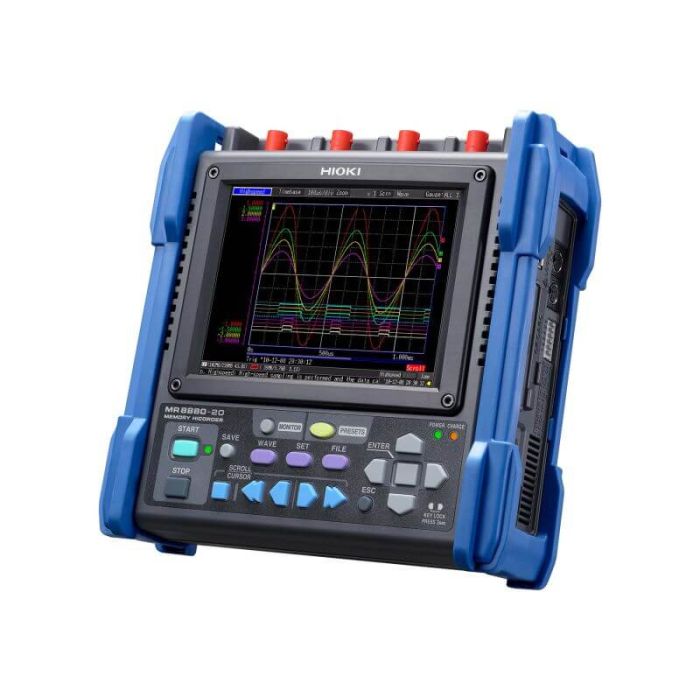

Memory HiCorder - 4ch, printer unit option, English model
This product is available in 5-7 weeks
Capture High- to Low-Voltage Signals in a Single Device! Rugged, Professional and Ready for the Field
Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analogue channels that can accept direct input of 600V, enabling measurements of 3-phase systems.
Key Features
- CAT III 600V isolation performance; directly measure a 480V power line
- 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
- Tough against harsh environments; -10°C to 50°C operating temperature range
- Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
- Make settings easily with PRESETS function
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply |
AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) DC power supply: 10 to 28 V DC |
| Dimensions and Weight | 206 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) When printer is combined - with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed) |
| Included Accessories | Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×2 |
| Number of Channels |
4 analogue channels + 8 logic channels (standard) Note: Isolated analogue channels, isolated input and frame, logic has common GND |
| Measurement Ranges |
4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2 |
| Frequency Characteristics | DC to 100 kHz (±3dB) |
| Measurement Functions |
High-speed function (high speed recording) Real-time function (actual time recording) |
| Memory Capacity | 14-bits × 1M-words/ch (1 word = 2 bytes) |
| Removable Storage | CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×2 |
| Display | 5.7-inch VGA-TFT color LCD (640 × 480 dots) |
| Printing |
[Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec Note: Printing is not supported when using alkaline batteries |
| Displayable Languages | English, Japanese, Chinese |
| Max Rated Voltage | Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV |
| Communication Interfaces | USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control |
| Recording Intervals | 101 µs to 1 minute, 19 selections (simultaneous sampling in all channels) |
| Time Axis (High-speed Function) | 101 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
