N9915B
N9915B
Keysight Technologies

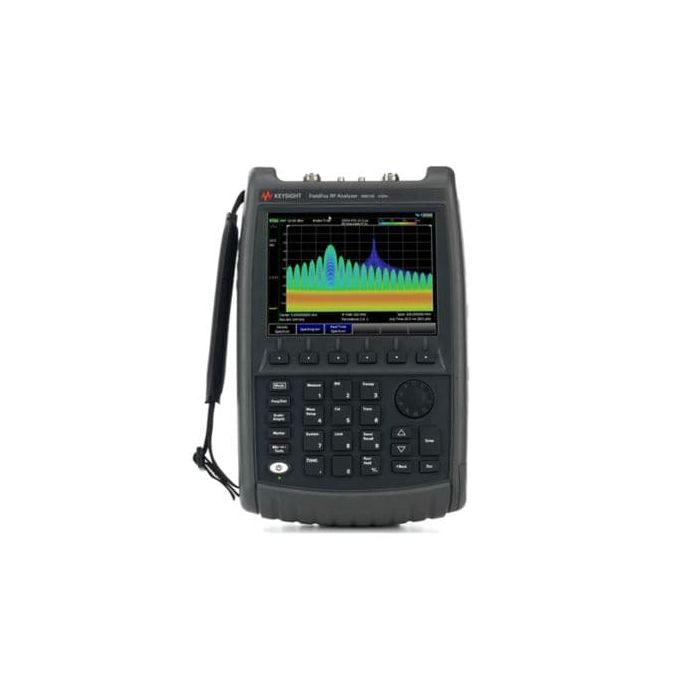

9 GHz FieldFox Microwave Analyzer
N9915B is a portable battery-operated analyzer; base function is a cable and antenna analyzer; configurations also include optional spectrum analyzer, VNA, RTSA, noise figure analyzer, built-in power meter, GPS receiver, vector voltmeter, and more.
Contact us for lead time
Contact our team for stock availability and product options.
Price
£15,670.08
Experience Keysight’s handheld precision equipment
As a Keysight Premium Partner, our test equipment experts offer product demos, trial units and technical advice, giving you the opportunity to try before you buy. And with supported pricing and some products available within just 5 working days – APC is the partner of choice for all your Keysight test equipment.
| Attribute | Value |
|---|---|
| Whats Included |
|
| Number of Built In Ports | 2 ports |
| Output Power | Up to 1 dBm |
| Trace Noise | 0.0008 dB rms |
| Applications Cellular | 89600 VSA Software, Over-The-Air LTE FDD and 5GTF |
| Applications -General Purpose | AM/FM Tune and Listen, Cable and Antenna Analysis, Field Strength Measurement, SCPI Code Compatibility, Spectrogram, Stimulus Response |
| Applications - Wireless Connectivity | 89600 VSA Software |
| Bandwidth Options | 10 standard, 40, 100 MHz |
| DANL @ 1 GHz | -163 dBm |
| Maximum Analysis Bandwidth | 100 MHz |
| Maximum Real Time Bandwidth | 100 MHz |
| Phase Noise @ 1GHz (1 MHz Offset) | -124 dBc/Hz |
| Phase Noise @ 1 GHz (10 kHz Offset) | -117 dBc/Hz |
| Phase Noise @ 1 GHz (30 kHz Offset) | -115 dBc/Hz |
| Standard Attenuator Range | 40 dB |
| Standard Attenuator Step | 5 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +11 dBm |
| Instrument Type | Combination Analyzer |
| Power Measurement Using USB Sensor | CW or Swept-Frequency, Frequency-Offset, RF Pulse Test with Peak Sensor |
| System Features | Built-In DC Source, GPS Receiver - Internal Only, Remote Control Capability |
| Additional CAT / VNA Based Features | Vector Voltmeter, Mixed-Mode S-Parameters, DTF/TDR Cable Measurements |
| Additional SA Based Features | Built-In Power Meter, Extended Range Transmission Analysis (ERTA), Real-Time Spectrum Analysis, Noise Figure Measurements, Over-The-Air Measurements |
| SA Start Frequency | 5 kHz |
| Applications - Digital Video | 89600 VSA Software |
| Spur Free Dynamic Range | > 104 dB |
| Key Features |
|
| Maximum Frequency | 9 GHz |
| Minimum Frequency | 30 kHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
