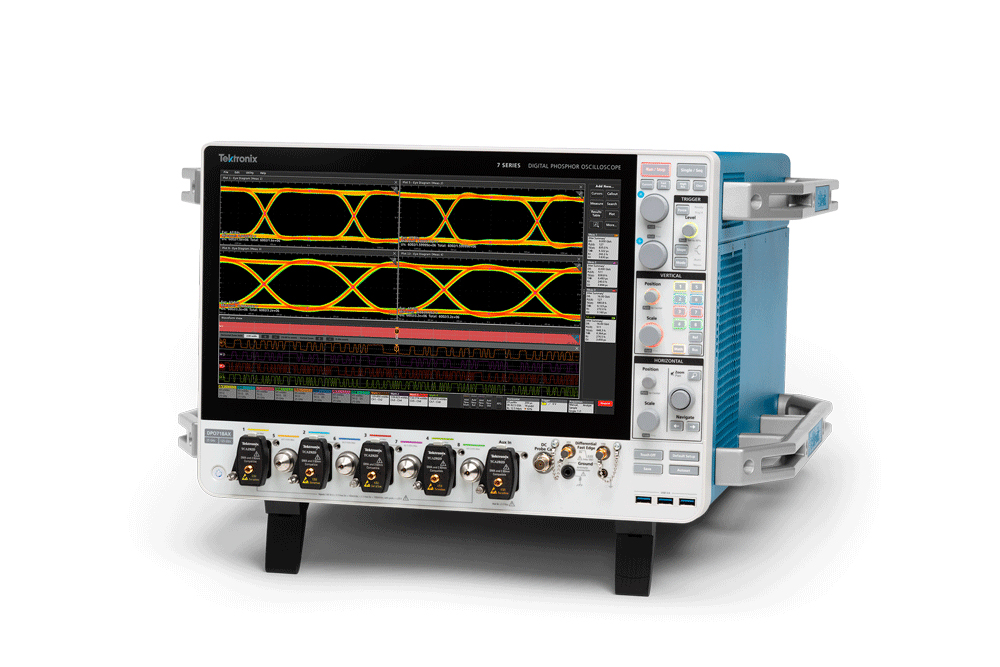

Meet the DPO718AX - More Channels. More Insight. Same Trusted 7 Series DPO
- Jennifer King
- New Products
- 15 Sept 2026
Engineered for excellence, this is more than an oscilloscope - it’s a platform for your next breakthrough.
Introducing the 7 Series DPO high-performance oscilloscope from Tektronix, built to meet the uncompromising demands of high-speed serial, RF, and high-energy physics applications. Push what’s possible with industry-leading signal fidelity and high ENOB and accelerate your workflow with 10x faster data offload. Engineered for excellence, it’s more than an Oscilloscope it’s a platform for your next breakthrough.
With up to 25 GHz analog bandwidth, the 7 Series DPO provides the most accurate real-time performance with several industry firsts:
- First 8 channel 25 GHz performance oscilloscope
- Lowest vertical (random) noise with highest ENOB (Effective Number of Bits)
- Fastest throughput with 10 Gb Ethernet LAN SFP+ port
- Delightful, yet familiar TekScope® user interface available with either embedded or Windows operating system
Other Key Features and Performance Specifications
- Available bandwidths (all analogue channels): 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz
- 4 TekConnect® input channels and 4 2.92 mm input channels (DPO718AX only) with one TekConnect® Aux In
- Sample rate 125 GS/s on all 4 TekConnect channels or 62.5 GS/s on both 4 TekConnect and 4 2.92 mm channels (user selectable)
- 12-bit ADC with highest ENOB and lowest random noise
- Precision timebase with low intrinsic jitter
- QuietChannel™ technology with active CTLE (Continuous Time Linear Equalization) which compensates for high-frequency signal channel loss
- Record length of 500 Mpoints standard, 1 or 2 Gpoints optional
- P7700 and P7600 Series TriMode™ probe compatible
- 15.6 inch HD touch screen display (1920 x 1080 resolution)
Available from Milexia's dedicated Test & Measurement Solutions team
In-house and Virtual Product Demonstrations Available.
As a leading UK Tektronix distributor, Milexia UK's specialist test equipment team work with customers who require high-end test and measurement products for use across a wide variety of applications, including communications, aerospace, defence, automotive, energy, semiconductor and general electronics. Our team are also on hand to provide in-house and virtual product demonstrations.
If you require a product demo or just want to find out more about Tektronix 7 Series DPO, get in touch with our team today.
